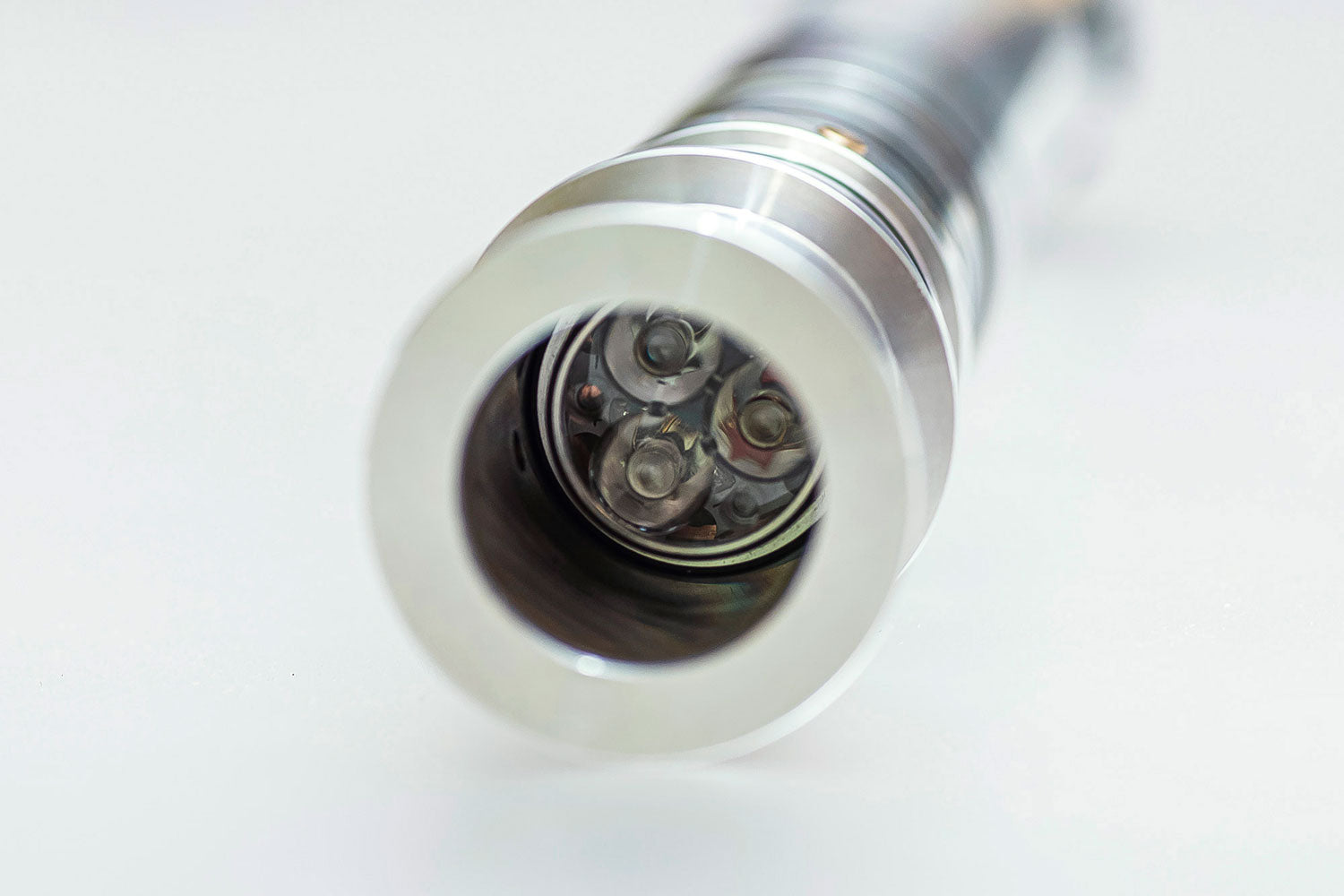

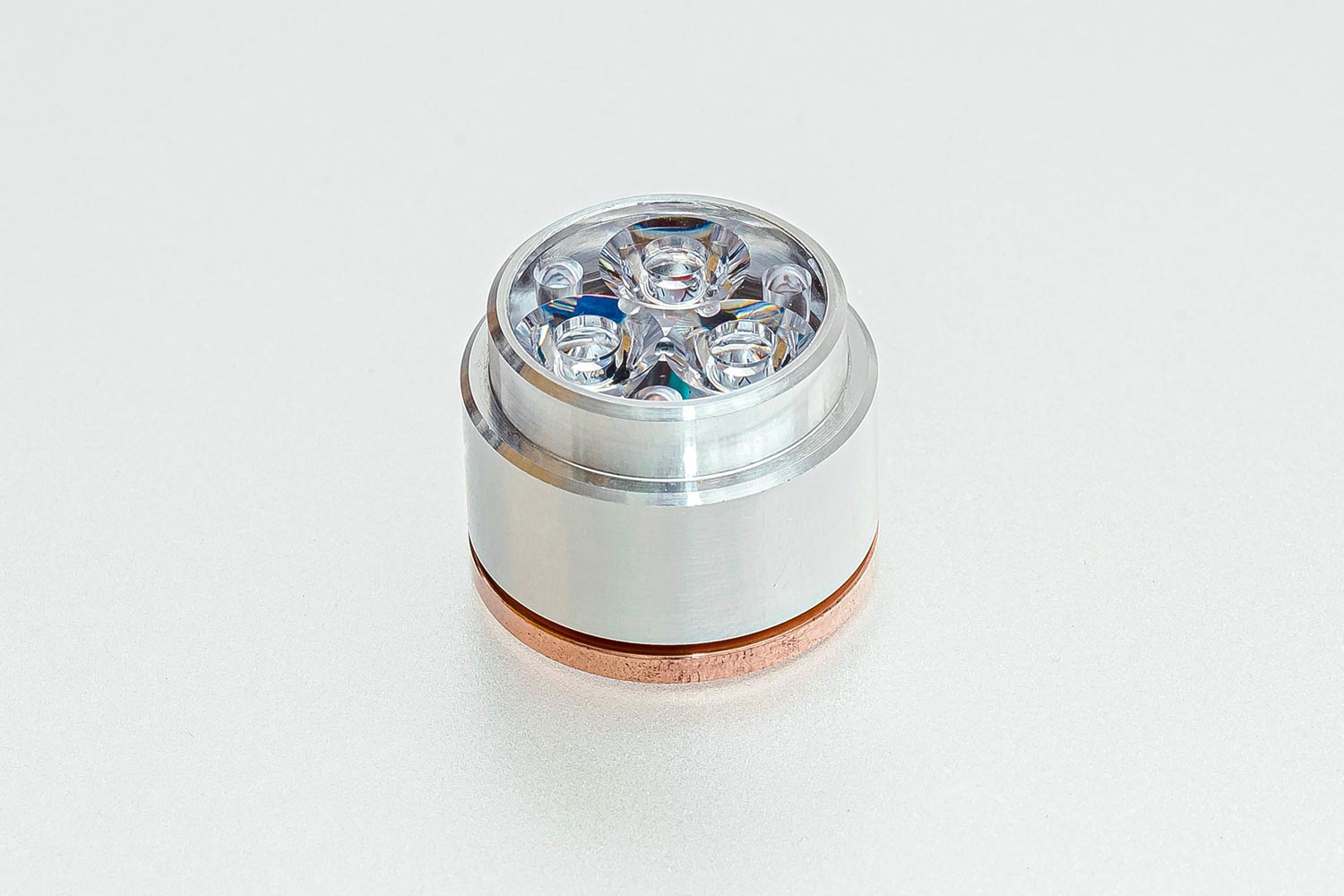

Our NEW upgraded Pixel-to-TriCree RGB high power LED module to quickly and easily convert any neopixel saber with a pogo-pin blade connector into "in-hilt" RGB LED saber. Our converter module is currently the brightest and most reliable on the market thanks to the brightest high power Cree XP-E2 leds, specially designed heat sink and a driver pcb. This module was developed from scratch by us in collaboration with our partners from Warsabers and designed with full contact dueling in mind.

By default these modules come in Red/Green/Royal Blue or Deep Red/Green/Royal Blue configuration by your choice, but we can also make them in any other custom Tri-Cree color configuration, please choose "Custom (by request)" option and specify your desired color configuration in the Order Note text field.

Blade Styles Examples:

• NeoCree Baselit Proffieboard Blade Styles Examples

Features:

• for 1 inch and 7/8 inch sabers blade sockets

• suitable for full contact dueling

• large copper heat sink and copper LED base for efficient cooling

• built-in 2 kOhm for Triple White or Custom Color and 56 kOhm for Default R/G/Rb or Dr/G/Rb configuration “Blade ID” between Data and GND

• brightest binned Cree XP-E2 LEDs

• available LED channels color options:

  •   Deep Red (Super Red) (Dr)
  •   Red (R)
  •   Red-Orange (Ro)
  •   Amber (A)
  •   Golden (Y)
  •   Green (G)
  •   Blue (B)
  •   Royal Blue (Rb)
  •   White (W)

• custom color combinations examples:

  • Triple Deep Red — (Dr/Dr/Dr)
  • Triple Red — (R/R/R)
  • Triple Red-Orange — (Ro/Ro/Ro)
  • Dark Orange — (Ro/Ro/A)
  • Orange — (A/A/Ro)
  • Triple Amber — (A/A/A)
  • Triple Golden — (Y/Y/Y)
  • Yellow — (A/A/G)
  • Lime — (Y/G/G)
  • Triple Green — (G/G/G)
  • Mint — (Y/G/B) (Blue and Yellow color channels may be set to around 50% drive power for a more saturated mint green)
  • Cyan — (G/G/B)
  • Sky Blue — (B/B/G)
  • Triple Blue — (B/B/B)
  • Dark Blue — (Rb/Rb/B)
  • Triple Royal Blue — (Rb/Rb/Rb)
  • Violet — (Dr/Rb/Rb) (Deep Red color channel must be set to 50% drive power or less)
  • Purple — (Dr/Dr/Rb) (one of the Deep Red color channels must be set to 50% drive power or less)
  • Magenta — (R/R/Rb)
  • Pink — (R/R/B)
  • Triple White — (W/W/W)

• works with both Thin-Walled and Thick-Walled, as well as 7/8 inch blades with a 1"-to-7/8" diameter adapter

• connection compatible with all hilt side pogo-pin PCBs (works with Vader's Vault, Genesis Custom Sabers, SaberTrio, SaberMach, Electrum Sabercrafts and other custom sabers)

Specifications:

• SCW copper core MCPCB with Direct Thermal Path (DTP)

• works as the 1st RGB pixel in the pixel strip, connected to the blade connector

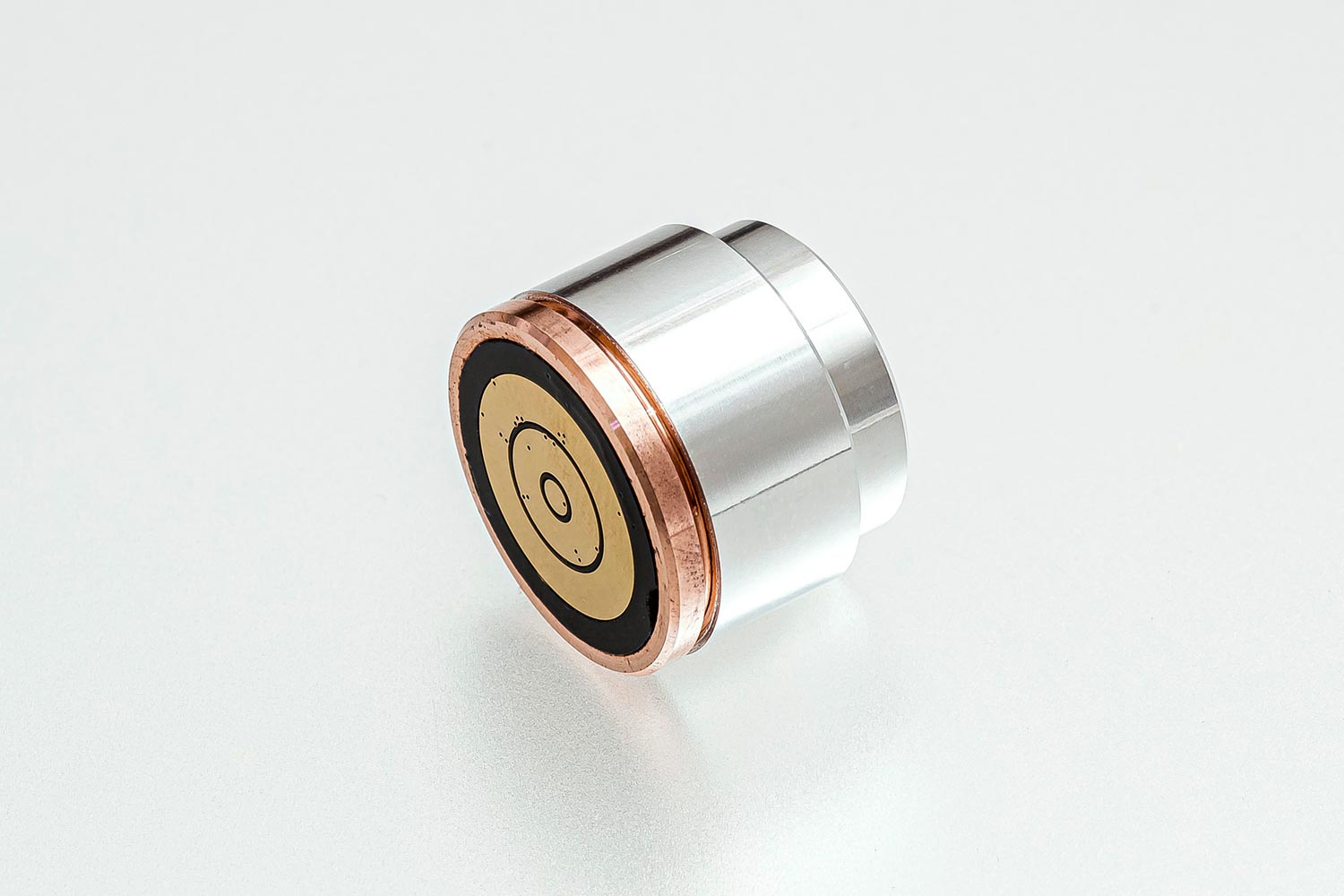

• connection pinout: center pad — Data, inner ring — Negative, outer ring — Positive

• power supply: 3.3V-4.5V DC (designed to work from a single 3.7V Li-Ion battery)

• total current consumption: 4-5A (at max brightness for all 3 color channels)

• configured for 1300-1500mA drive per color (can be manually changed by customer if desired, will require removing the driver PCB, changing current limiting resistors and resoldering LED wires)

• dimensions:

  • 1 inch configuration: ⌀25.3x20mm (only 7mm in length if using with a Thin-Walled 1 inch blade with 22.2mm ID)

  • 7/8 inch configuration: ⌀22.2x20mm

Available options:

"Adapter Tube": adapter tube serves multiple functions

• adapts 1 inch blade socket to use 7/8 inch blades
• with a Triple White LED configuration to use your saber as a torch without blade — this tube helps to secure the NeoCree module in the saber blade socket

What's in the box:

• x1 NeoCree V2 Module with 1" and 7/8" adapter caps

How to use:
