(PLEASE CONTACT US TO ORDER, WE CURRENTLY ACCEPT PAYMENTS ONLY BY PAYPAL)

Plastic 3D-printed parts are made to each individual order, current production lead time is 6-8 days before shipping.

A 3D-printed plastic chassis kit for Revanted DIY saber hilt with or without metal crystal chamber.

Supported Features:

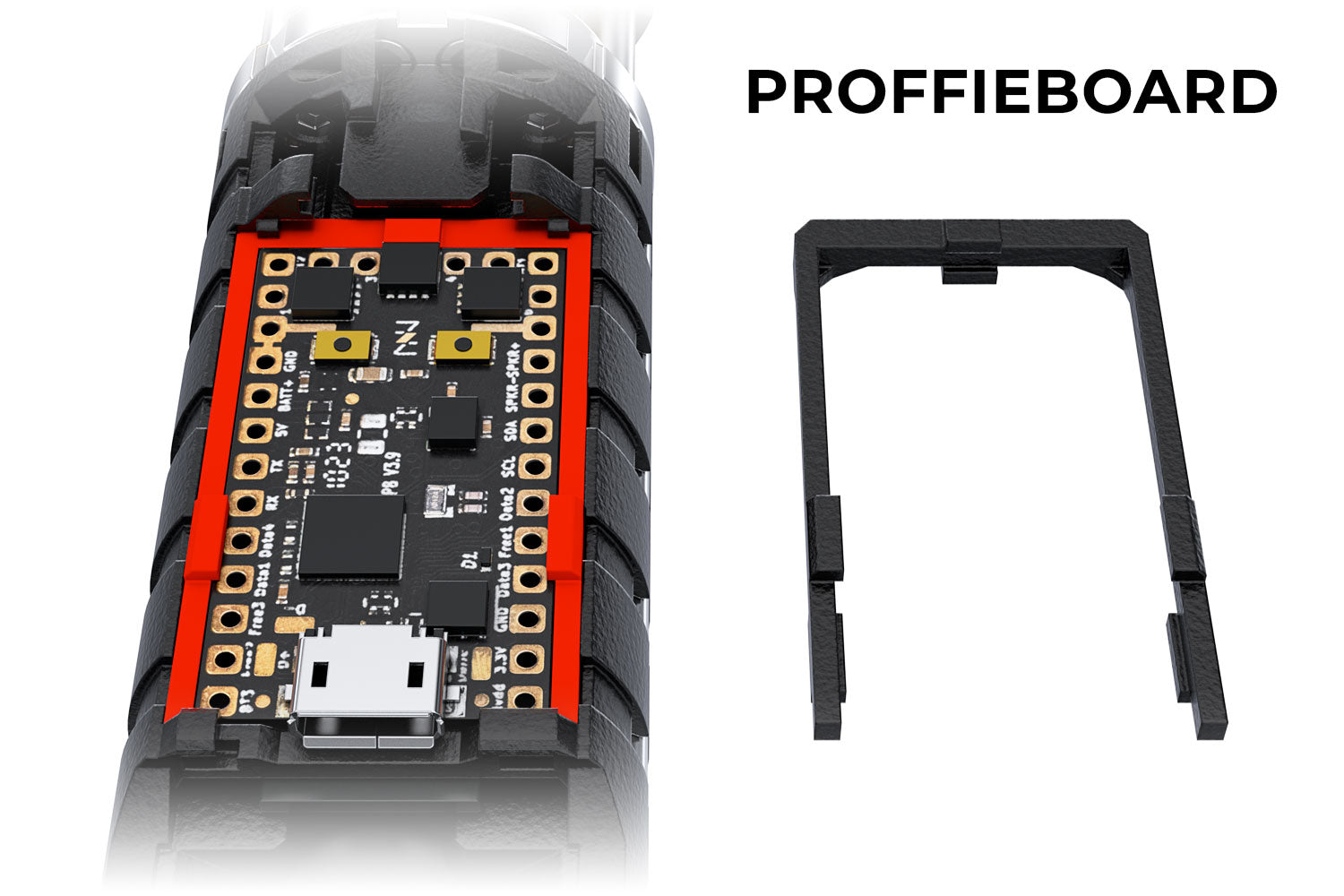

• for Proffieboard v2.2, Proffieboard v3.9, CFX, GHv4, GHv3 or Verso sound boards

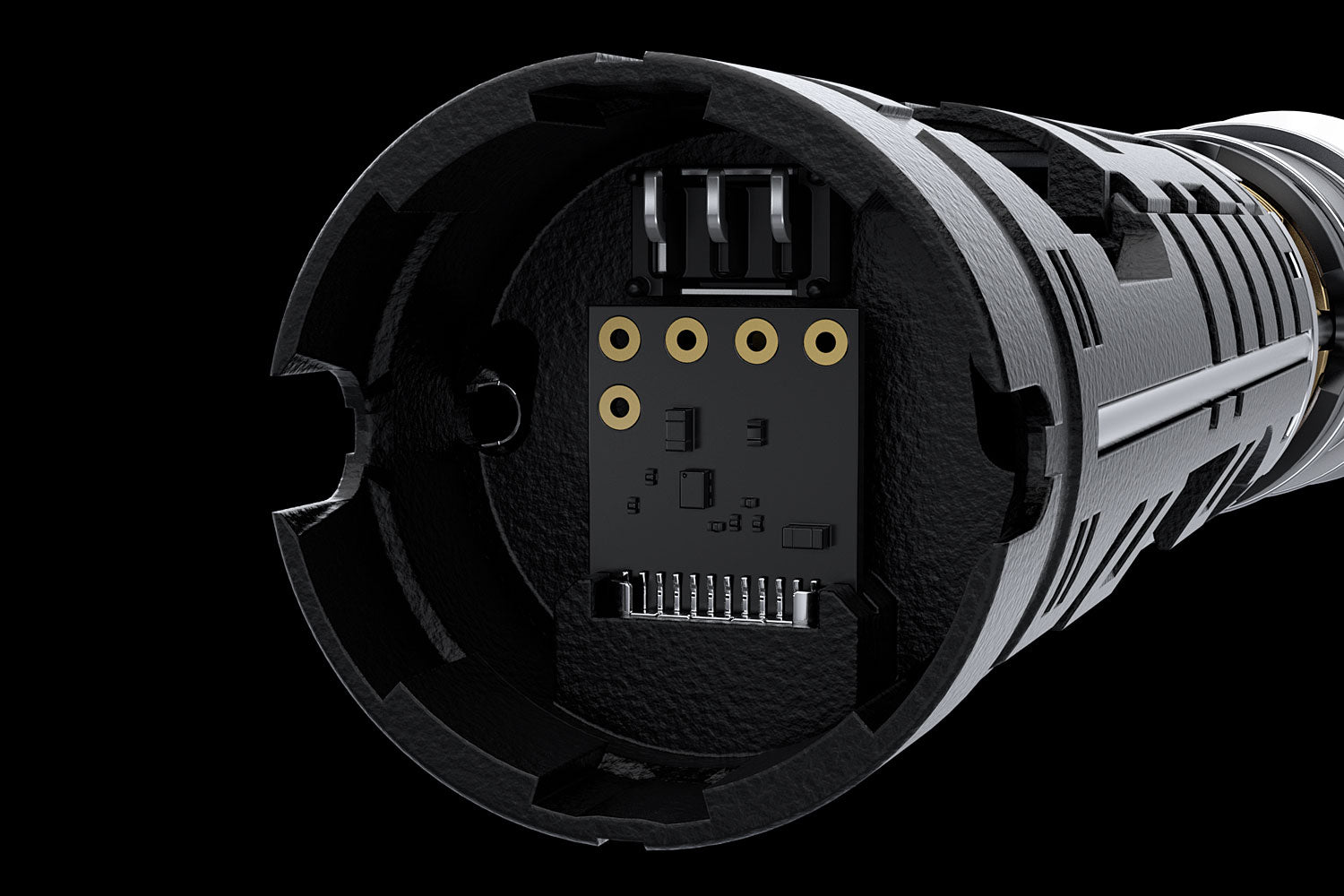

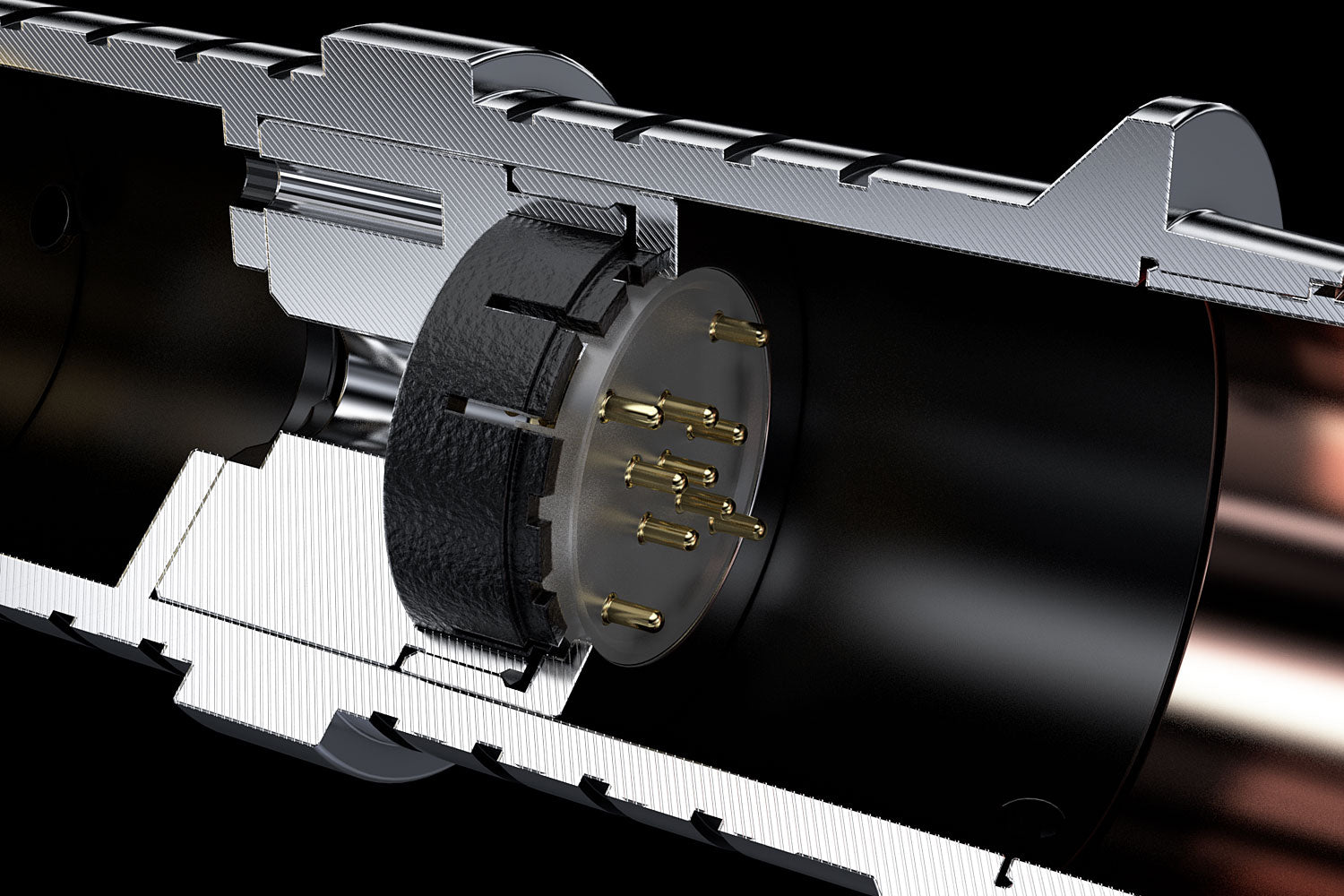

• for NPXL™ V3-V4 Hilt side blade connector

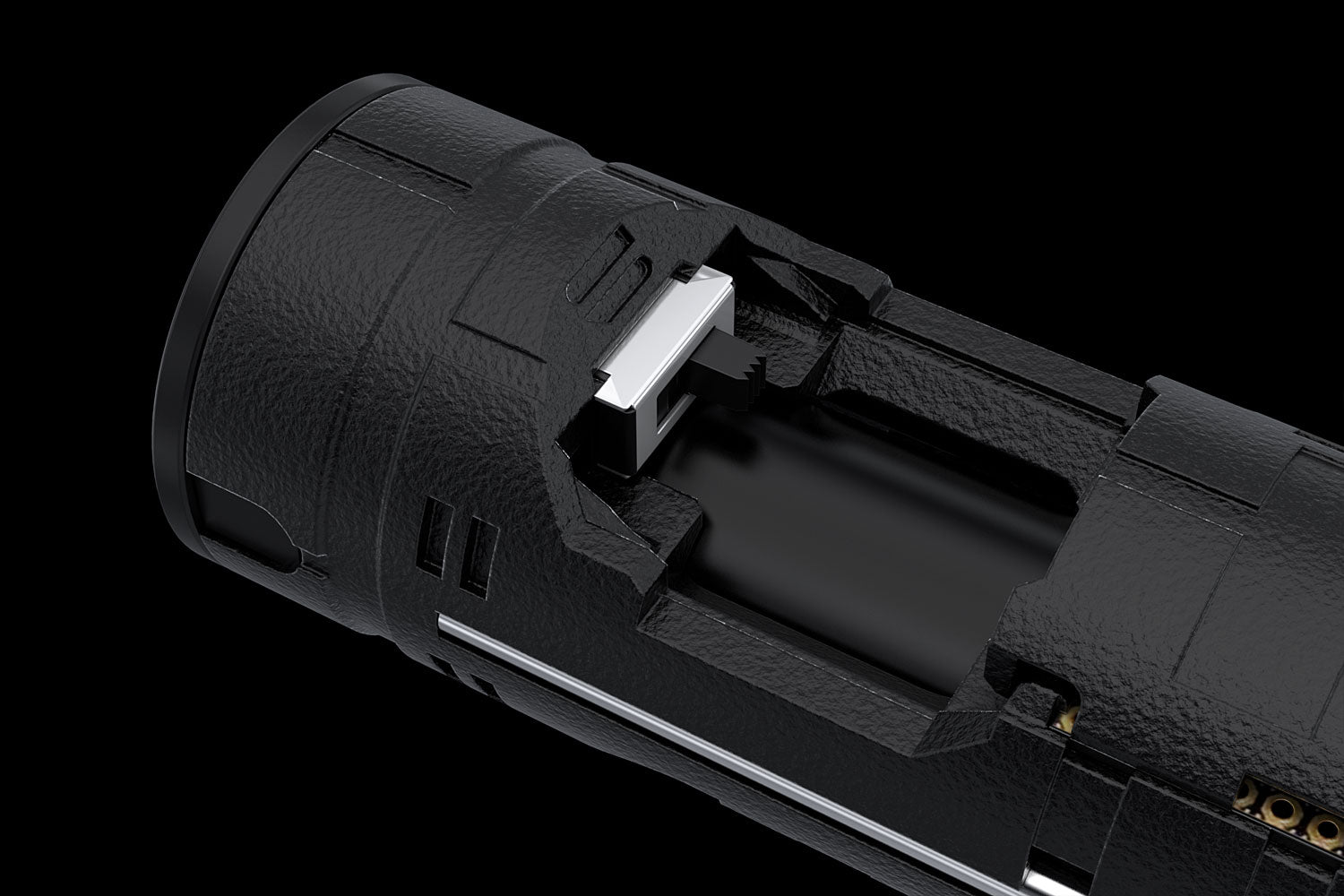

• Removable Protected 18650 3.7V 10-15A Li-Ion battery

• Kill Switch

• Sabertec Seedling V2 USB-C module for data and 1-2A in-hilt battery charging

• BT909 bluetooth module for remote control and setup

• 28mm speaker

• 2 tactile momentary buttons


• easy microSD card access


Material:

• Matte black nylon plastic, medium grain, no visible print layers

Available options:

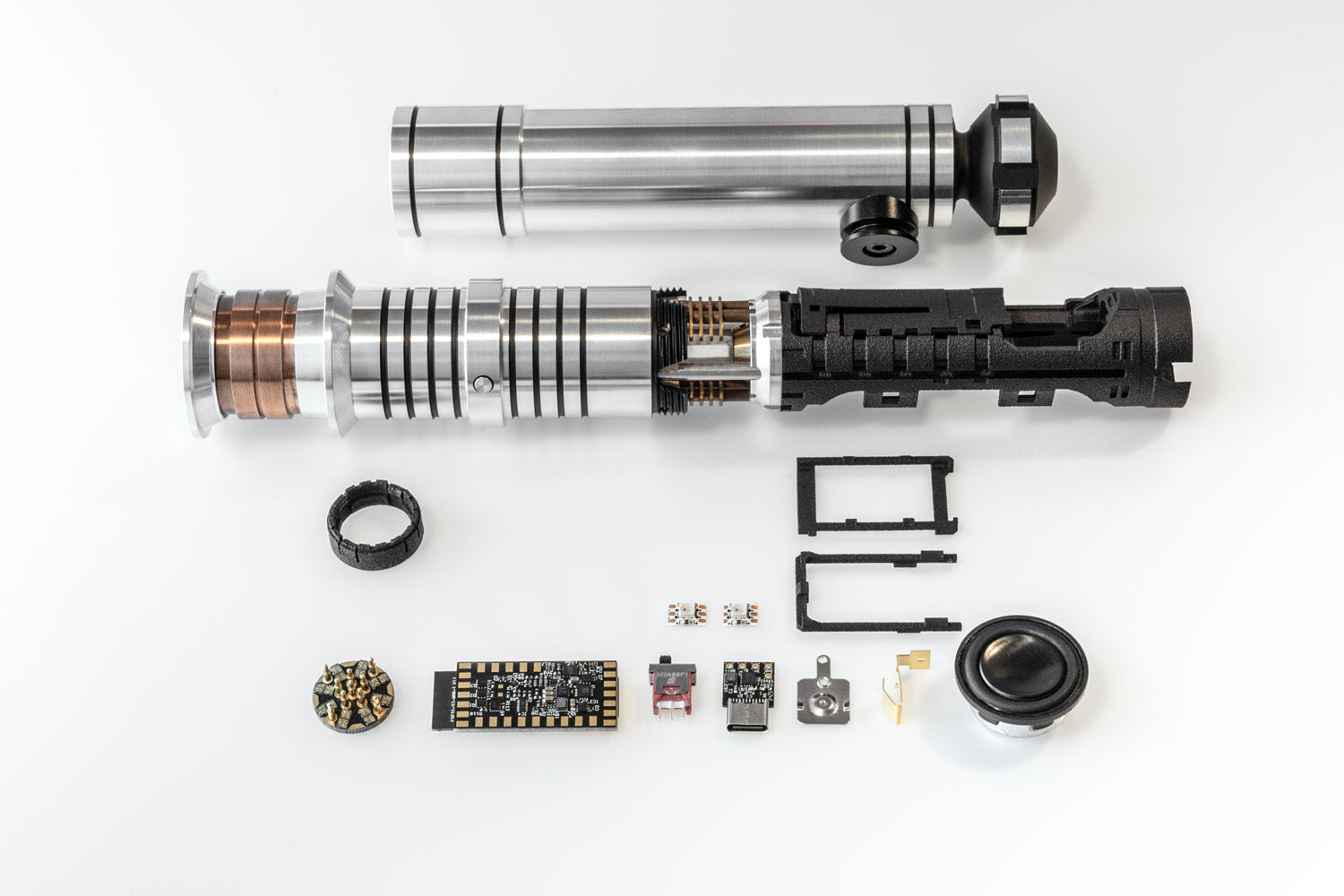

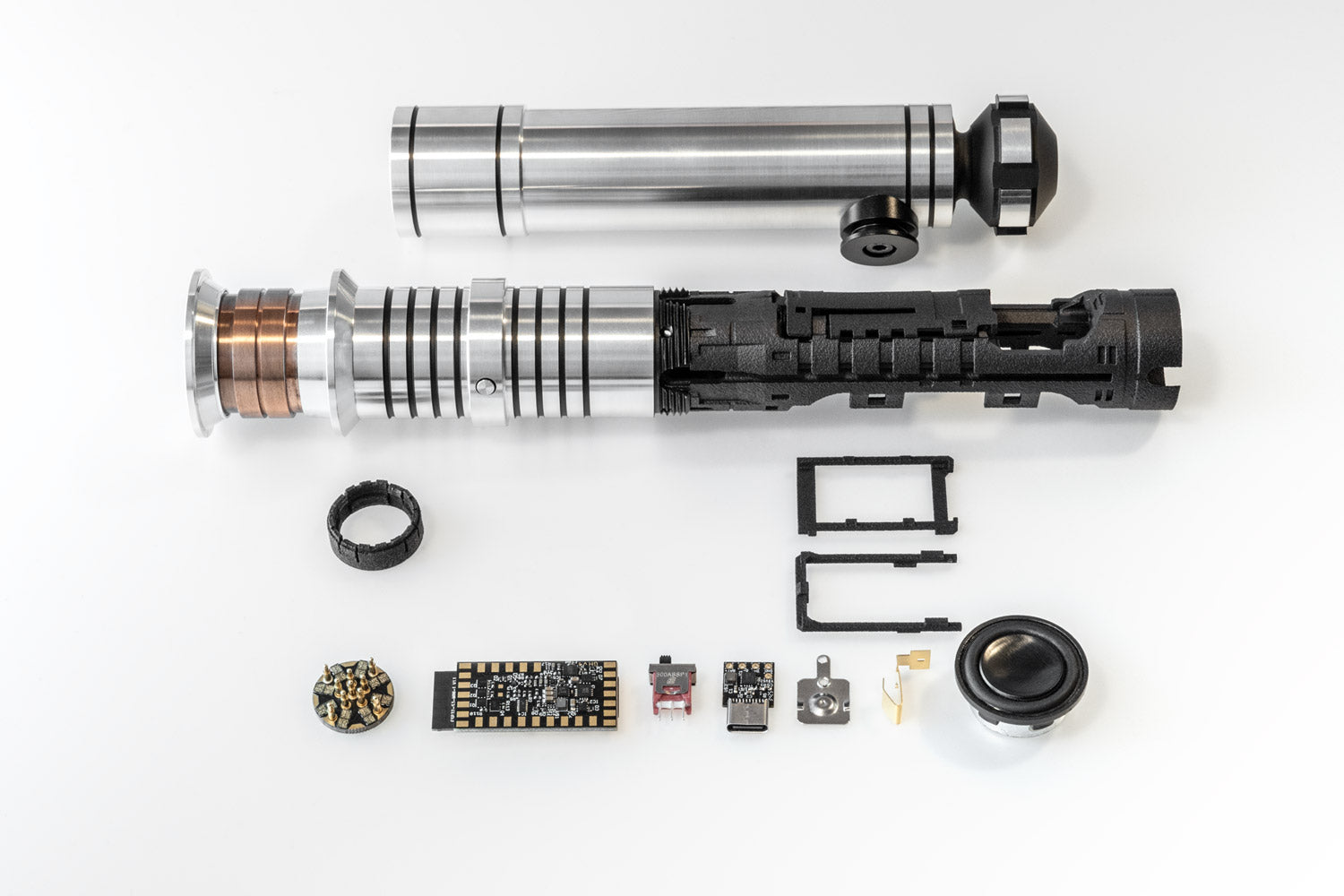

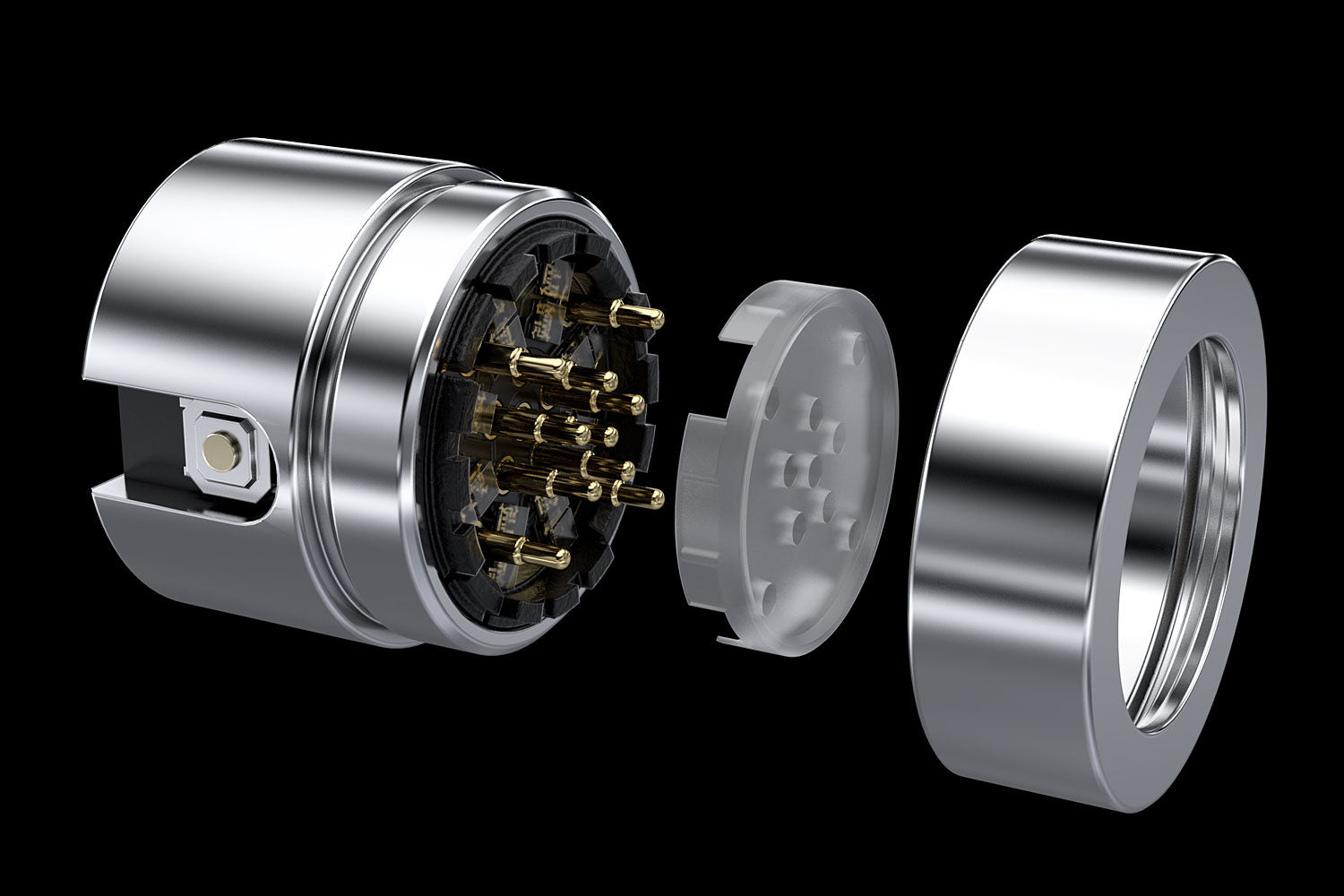

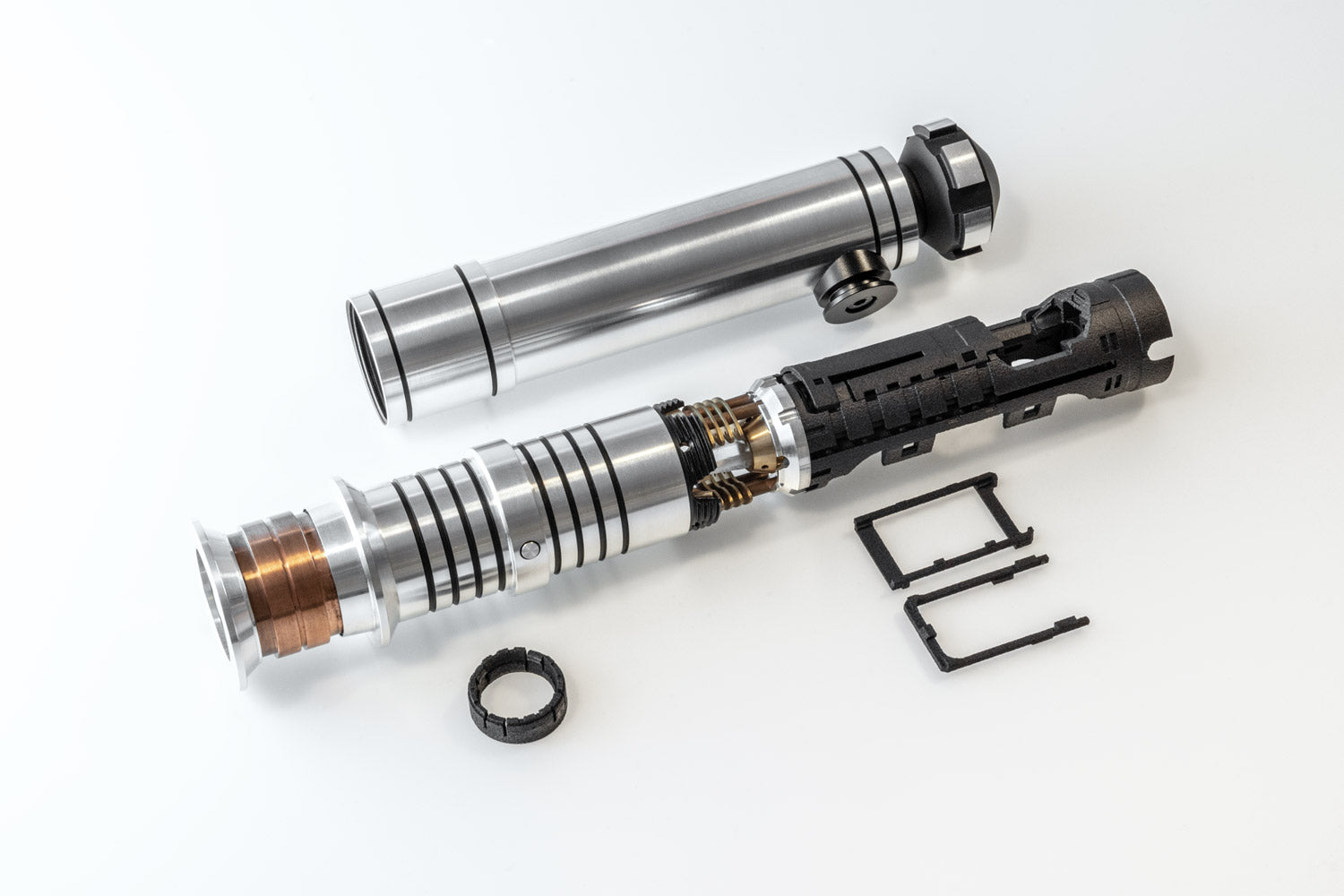

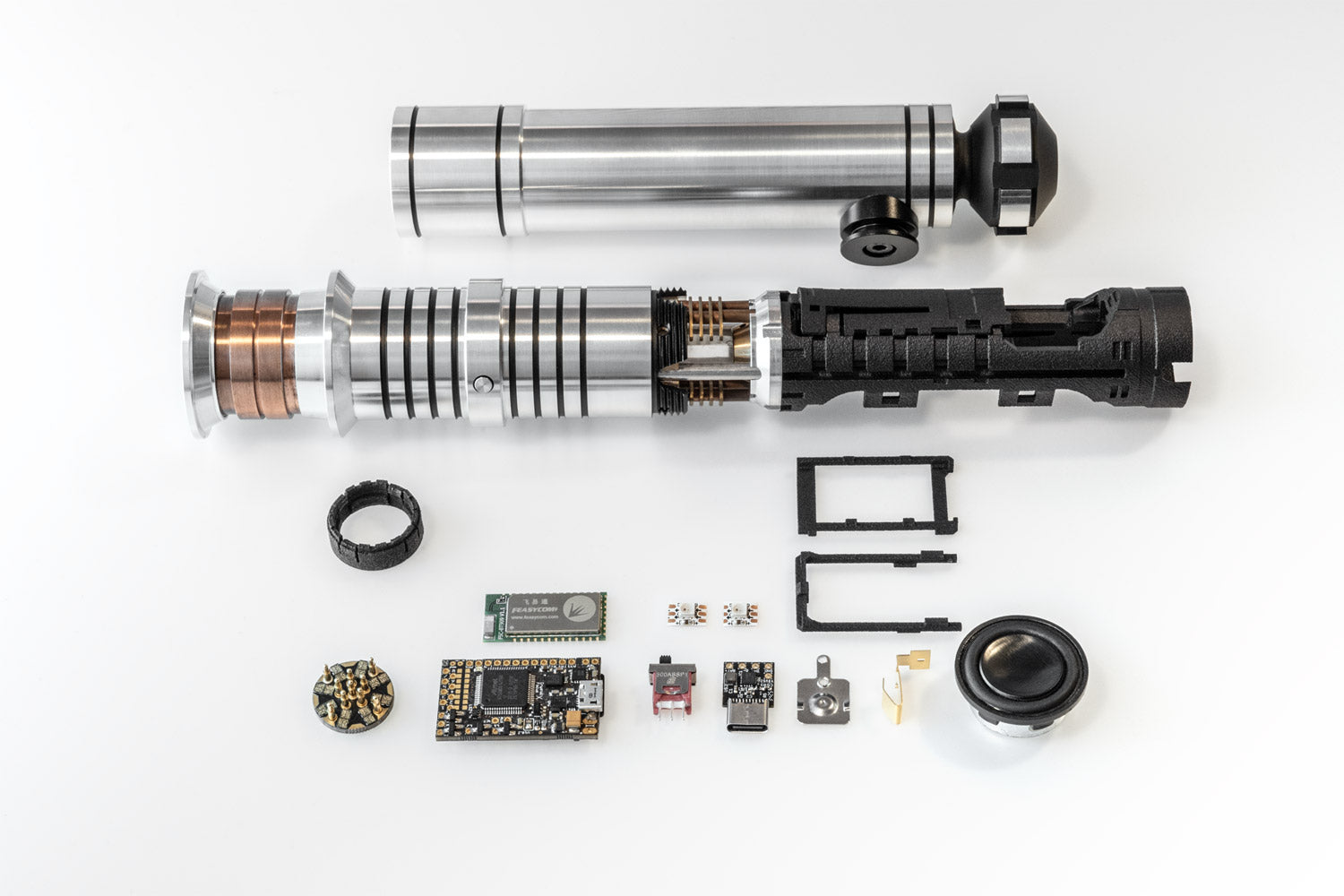

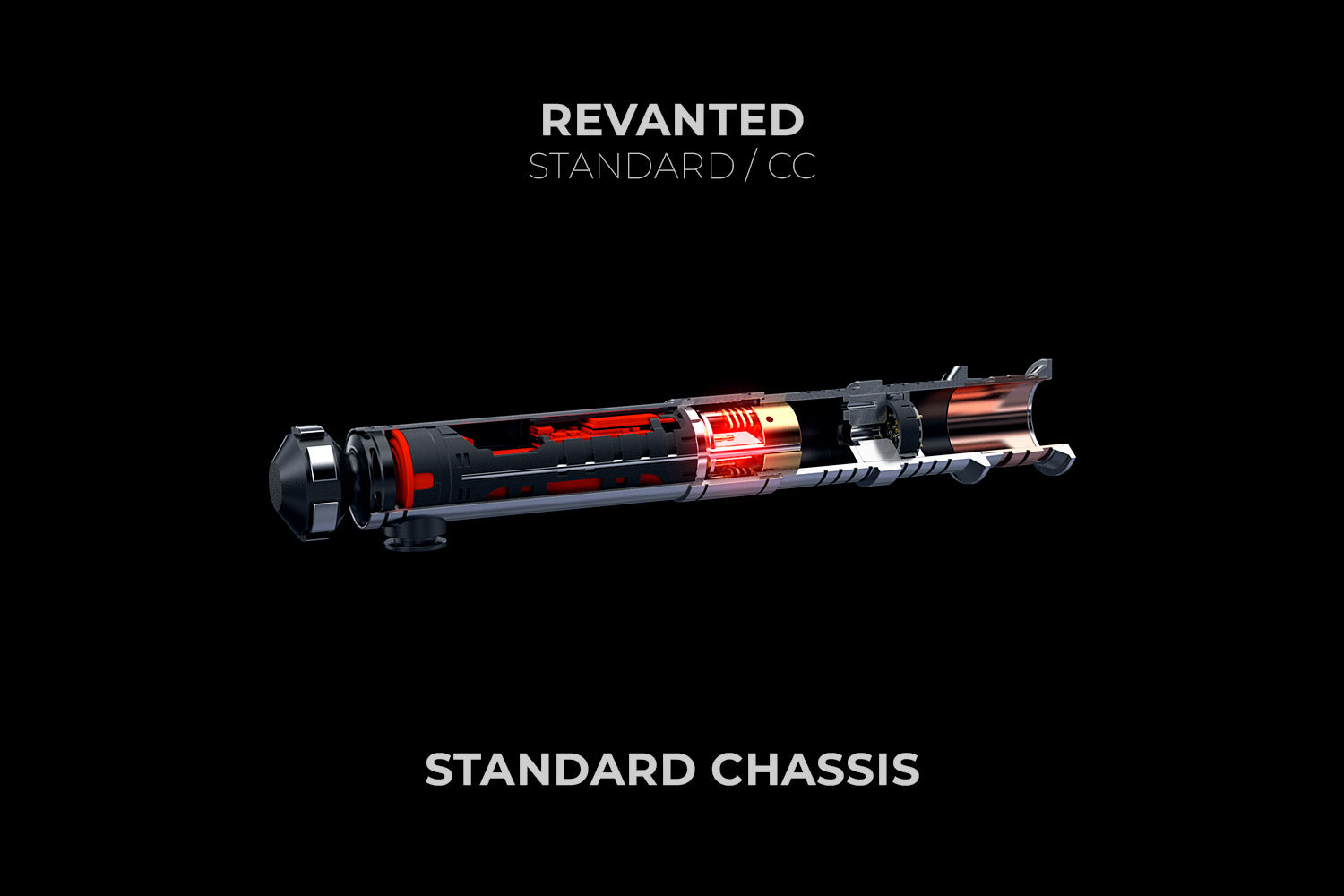

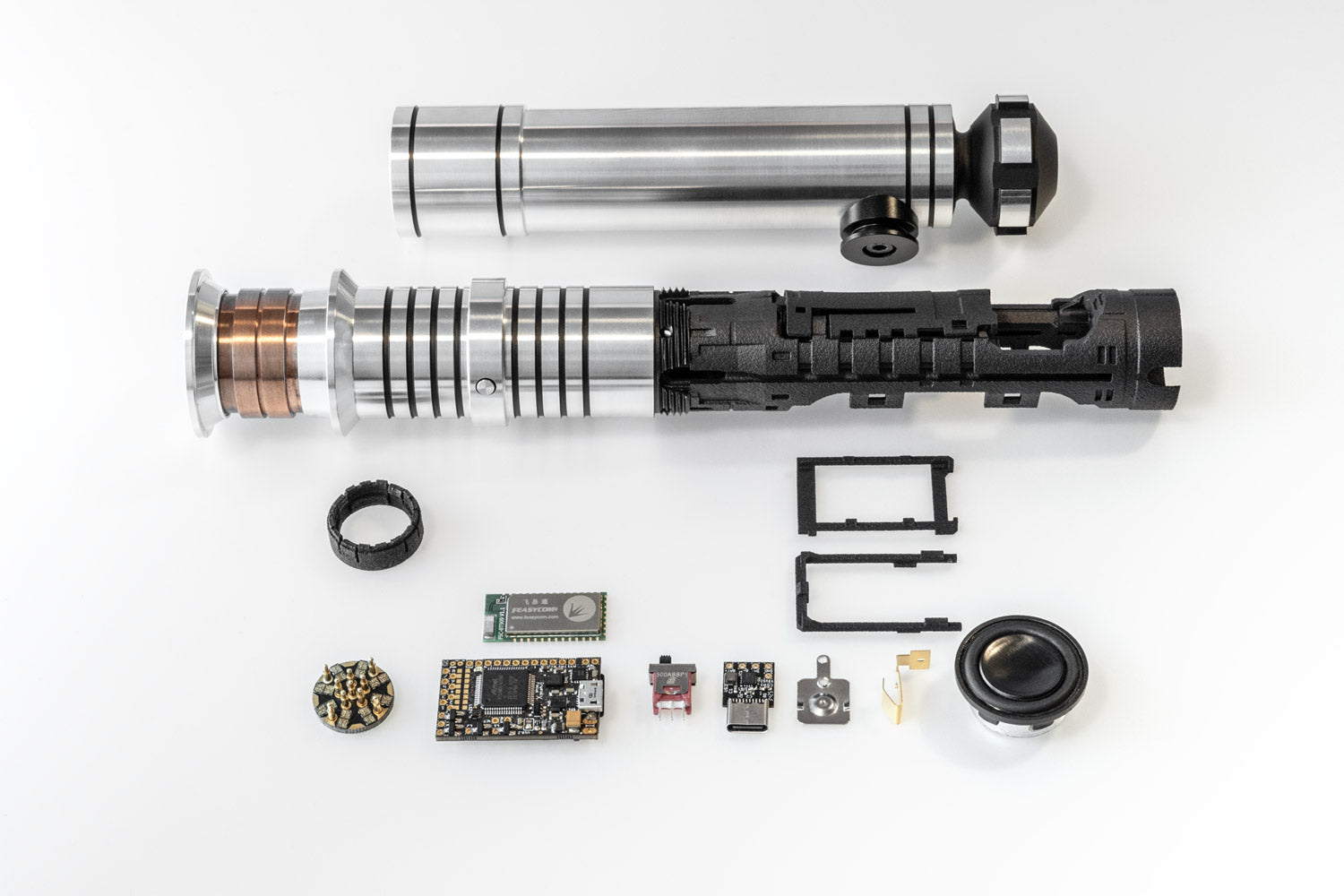

"CHASSIS TYPE": Only chassis parts for the Standard chassis without Crystal Chamber or CC chassis for the metal 1 inch DIY Crystal Chamber

"ADD ELECTRONICS KIT": Includes the following electronic components

• x1 Sound Board

  • Proffieboard v2.2 by KR Sabers (UK)
  • Proffieboard v3.9 by KR Sabers (UK)
  • Golden Harvest v3 (GHv3) by SaberTec (DE)
  • Golden Harvest v4 (GHv4) by SaberTec (DE)

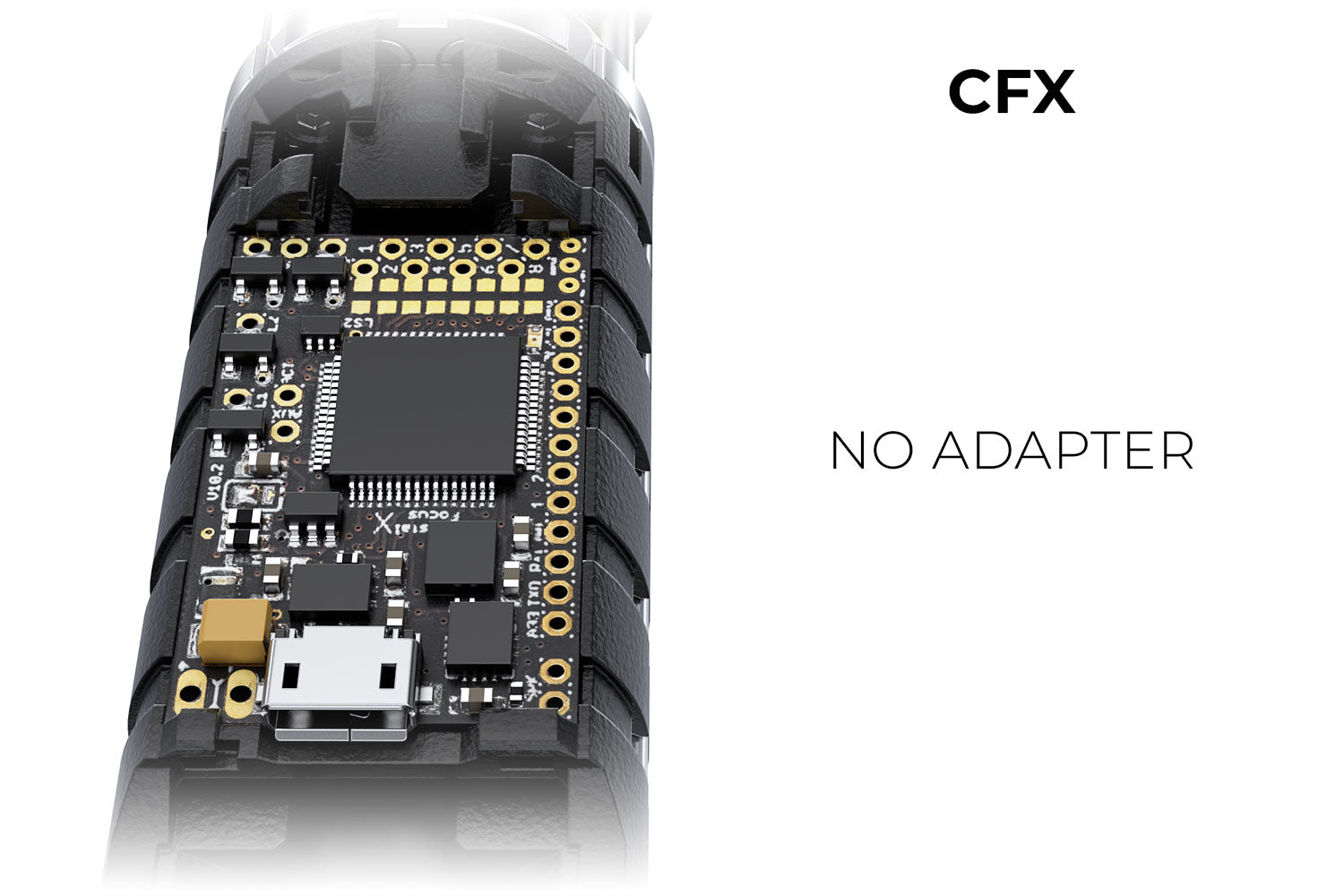

  • Crystal Focus v10.2 (9-axis) (CFX) by Plecter Labs (FR)

• x1 Our NPXL™ V4 Hilt side pcb for blade connection


• x1 Kill Switch

• x1 Seedling V2 USB-C module for data and 1-2A in-hilt battery charging

• x1 BT909 bluetooth module (not included with GHv3 and GHv4 sound boards)

• x1 28mm speaker

• x2 tactile momentary switches (included in the saber hilt KIT)

• x2 RGB single accent pixels for the crystal


• battery is NOT included

What's in the box:

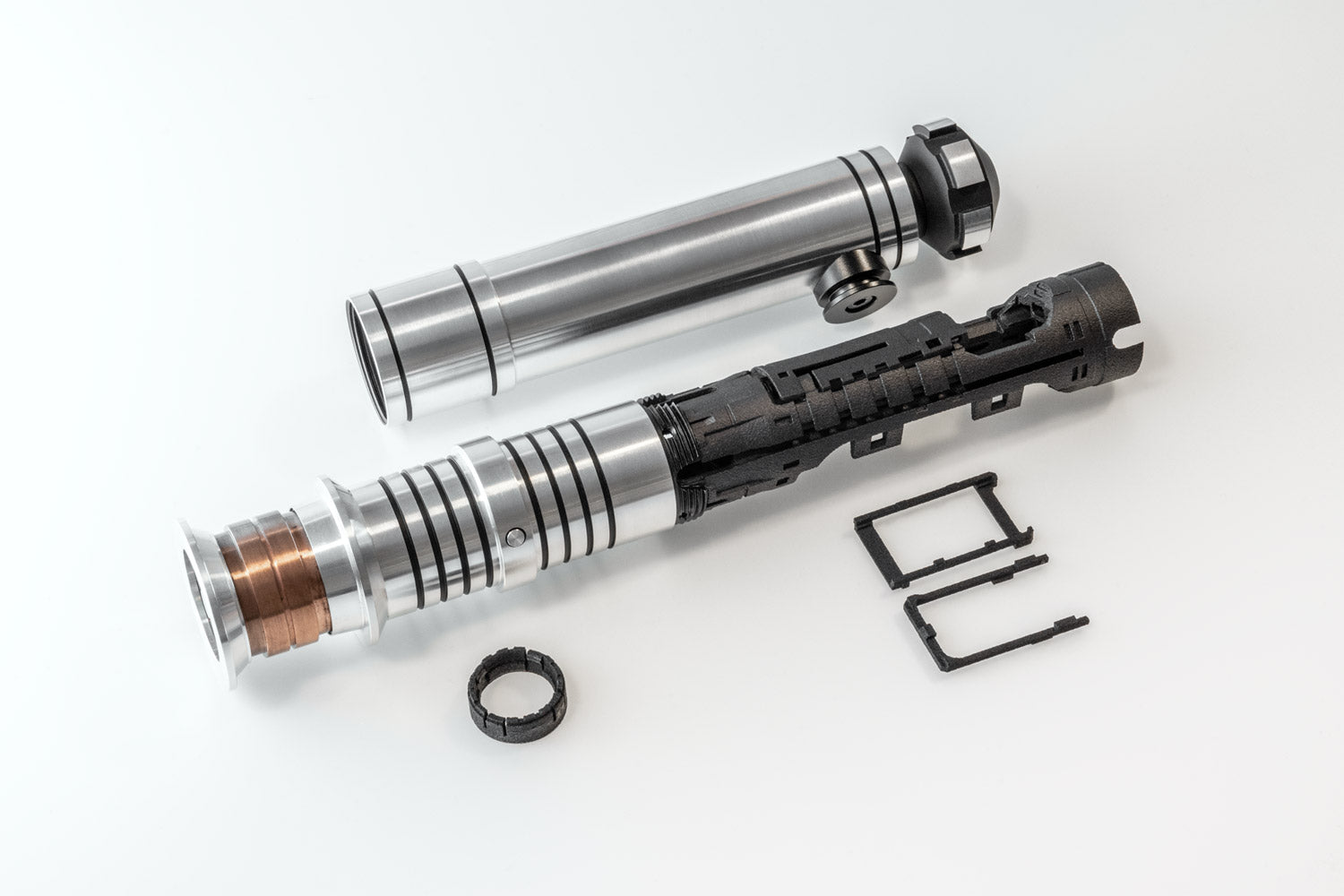

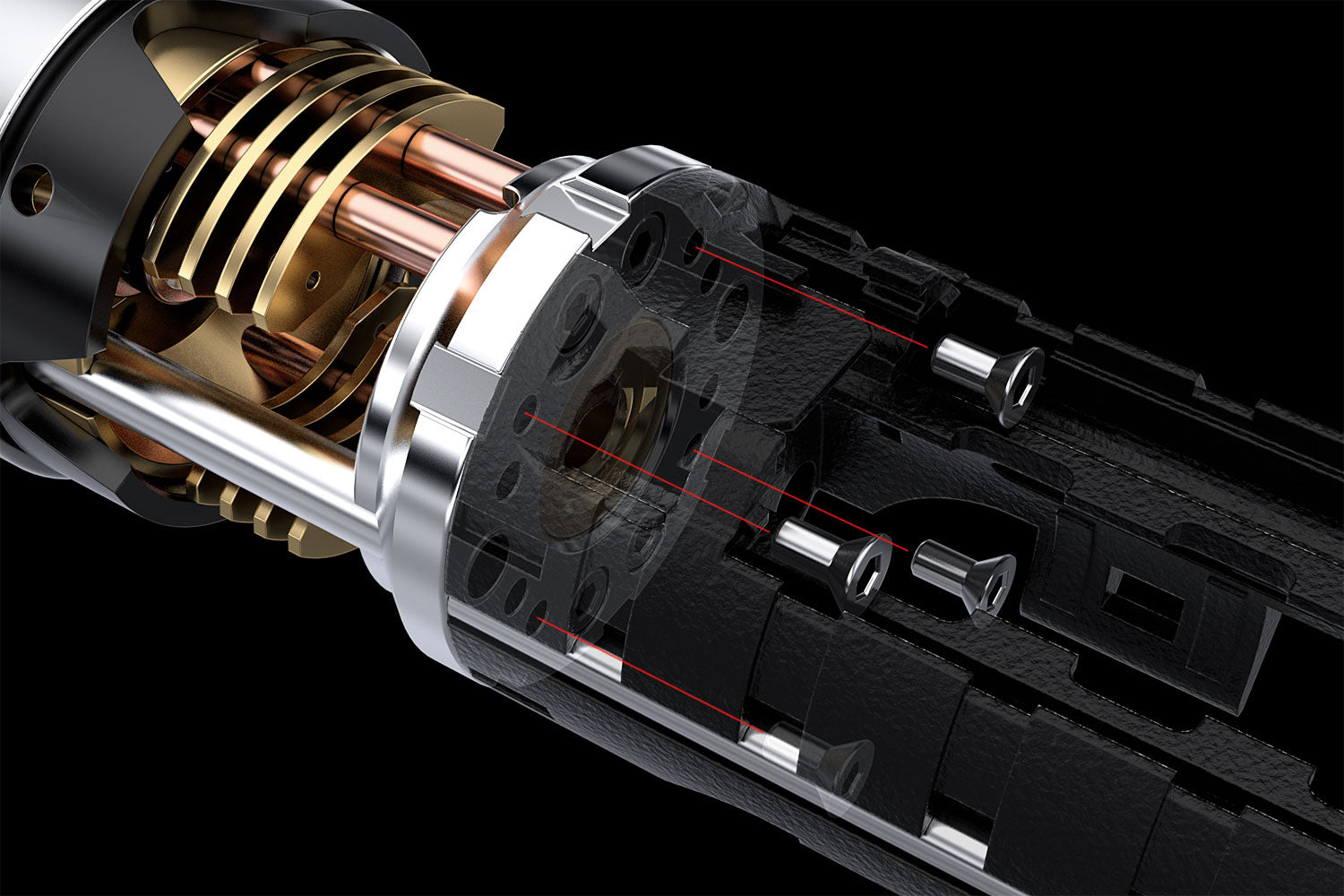

• x6 black nylon Chassis parts

What's needed:

• x1 18650 Protected 3.7V 3120mAh 15A, 3500mAh or 4000mAh 10A Li-Ion Battery

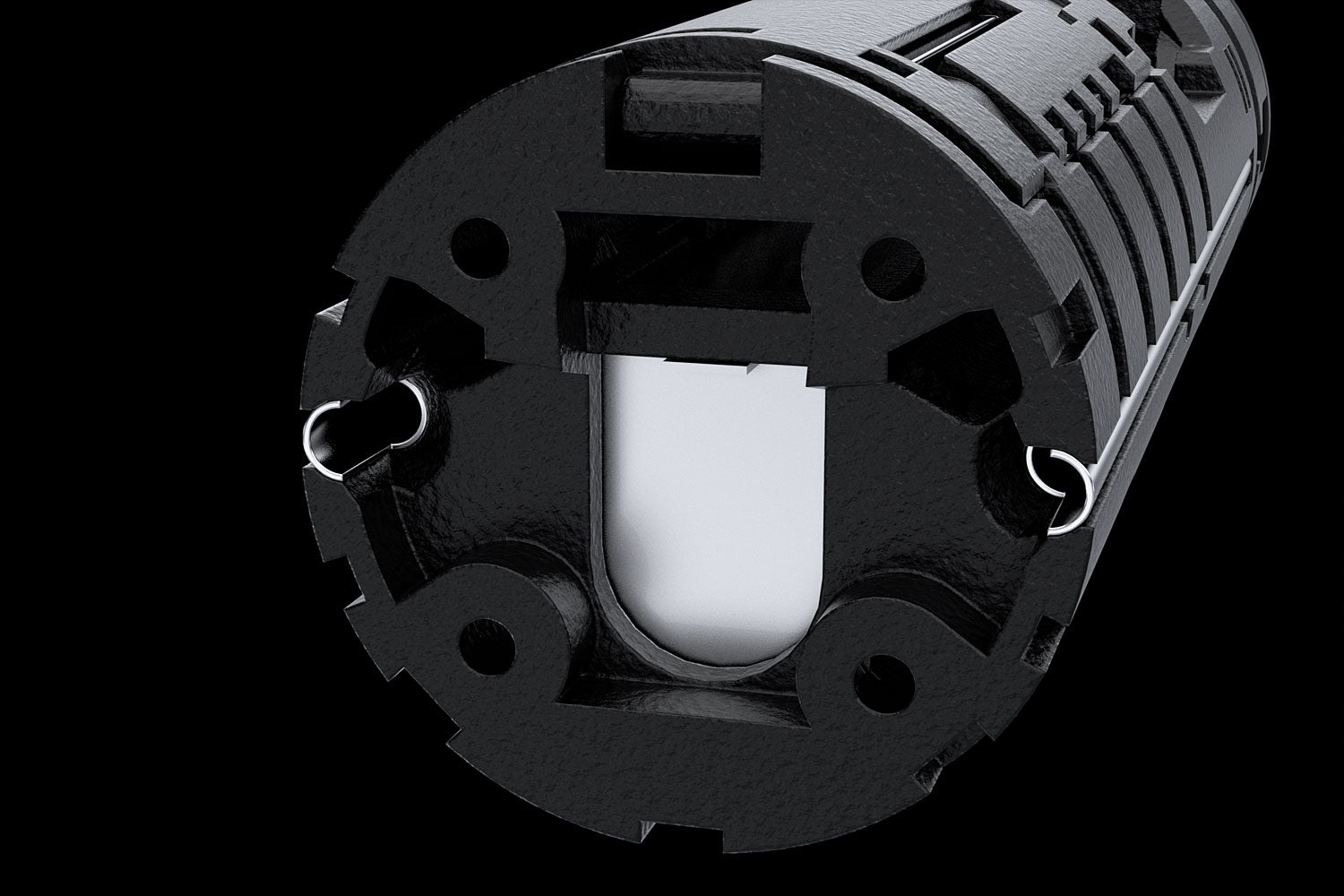

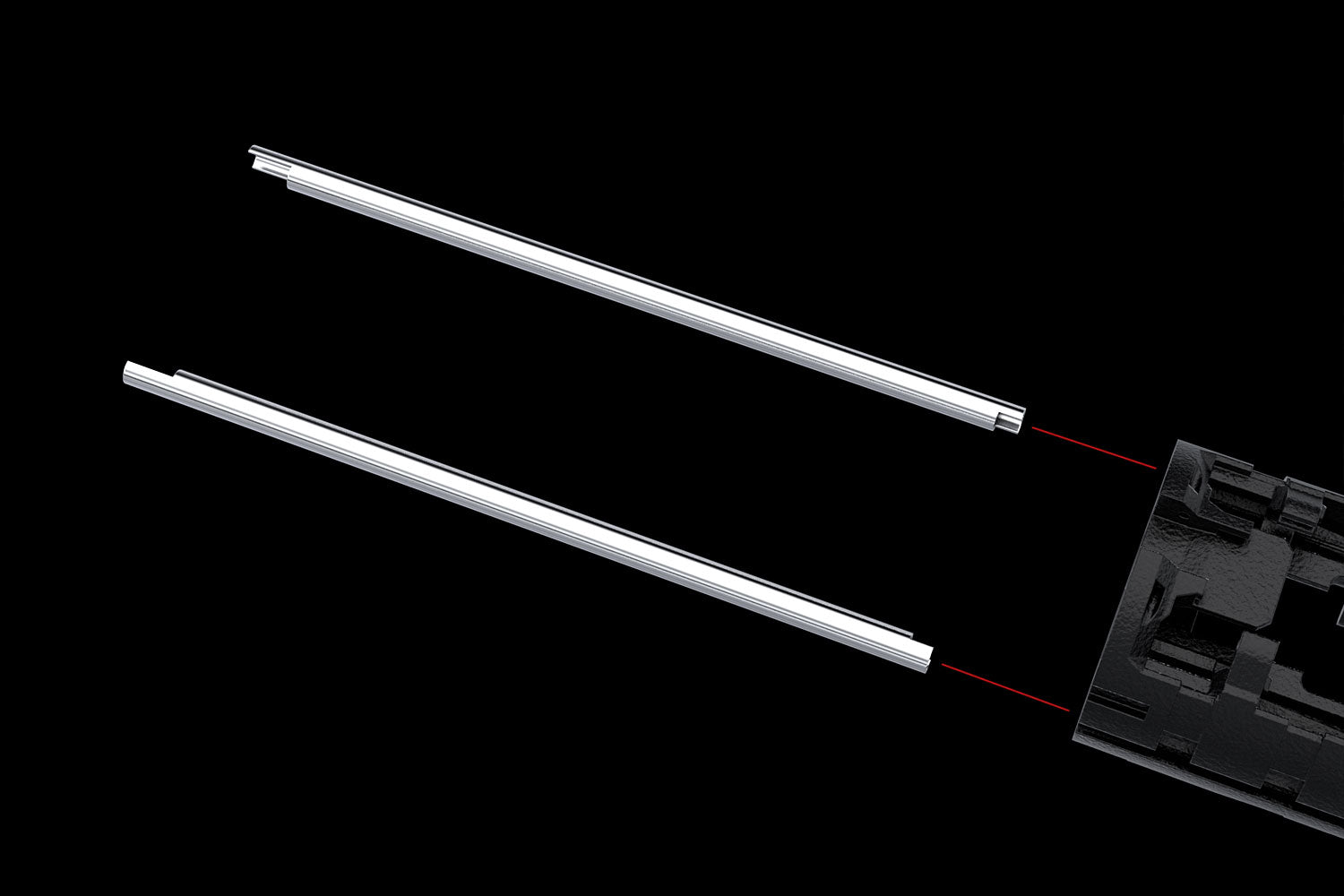

• x2 3mm OD 77.2mm long aluminum, brass or copper tubes to hide wires on the sides of the chassis wire channels

• x1 1mm OD 9.4mm long brass rod to attach chassis board lid

• 20-22AWG, 24AWG, 28-30AWG, 32AWG wires
