Our NEW upgraded Pixel-to-TriCree RGB high power LED module to quickly and easily convert any neopixel saber with a pogo-pin blade connector into "in-hilt" RGB LED saber. Our converter module is currently the brightest and most reliable on the market thanks to the brightest high power Cree XP-E2 leds, specially designed heat sink and a driver pcb. This module was developed from scratch by us in collaboration with our partners from Warsabers and designed with full contact dueling in mind.

By default these modules come in Red/Green/Royal Blue configuration, but we can also make them in any other custom Tri-Cree color configuration, please choose "Custom (by request)" option and specify your desired color configuration in the order Notes at checkout.

Features:

• for 1 inch and 7/8 inch sabers blade sockets

• suitable for full contact dueling

• large copper heat sink and copper LED base for efficient cooling

• built-in 2 kOhm “Blade ID” between Data and GND

• brightest binned Cree XP-E2 LEDs with Red/Green/RoyalBlue color configuration (any custom color configuration possible by request)

• available LED channels color options: Deep Red (Super Red) (DR), Red (R), Red-Orange (RO), Amber (A), Yellow (Y), Green (G), Blue (B), Royal Blue (RB), White (W)

• SCW copper core MCPCB with direct thermal path

• works as the 1st RGB pixel in the pixel strip, connected to the blade connector

• configured for 1300-1500mA drive per color (can be manually changed by customer if desired, will require removing the driver PCB, changing current limiting resistors and resoldering LED wires)

• 1 inch configuration: ⌀25.3x20mm (only 7mm in length if using with a Thin-Walled 1 inch blade)

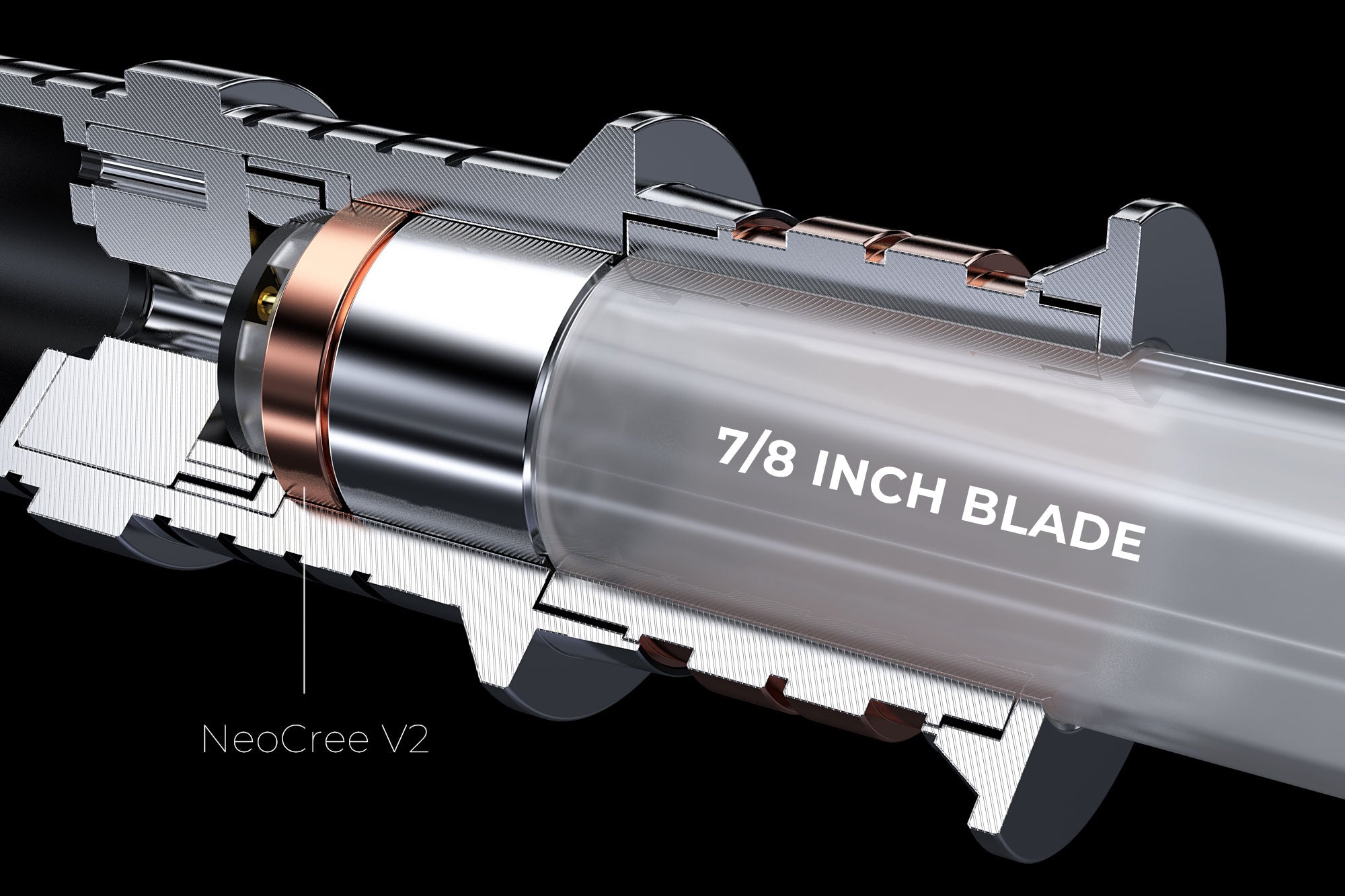

• 7/8 inch configuration: ⌀22.2x20mm

• works with both Thin-Walled and Thick-Walled, as well as 7/8 inch blades with a 1"-to-7/8" diameter adapter

• connection compatible with all hilt side pogo-pin PCBs (works with Vader's Vault, Genesis Custom Sabers, SaberTrio, SaberMach, Electrum Sabercrafts and other custom sabers)

How to use:

Brightness comparison with other similar modules on the market:

Reviews:
