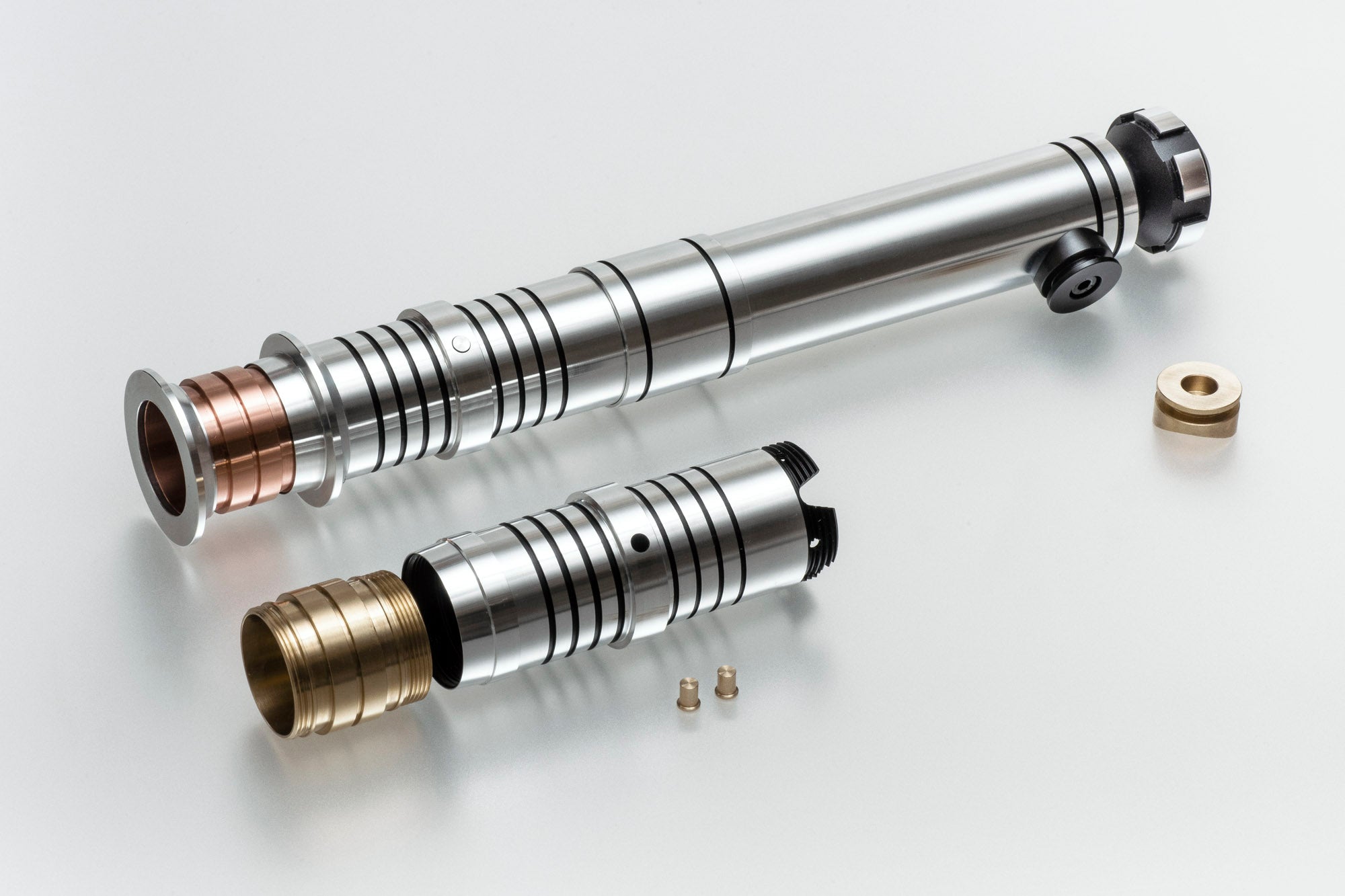

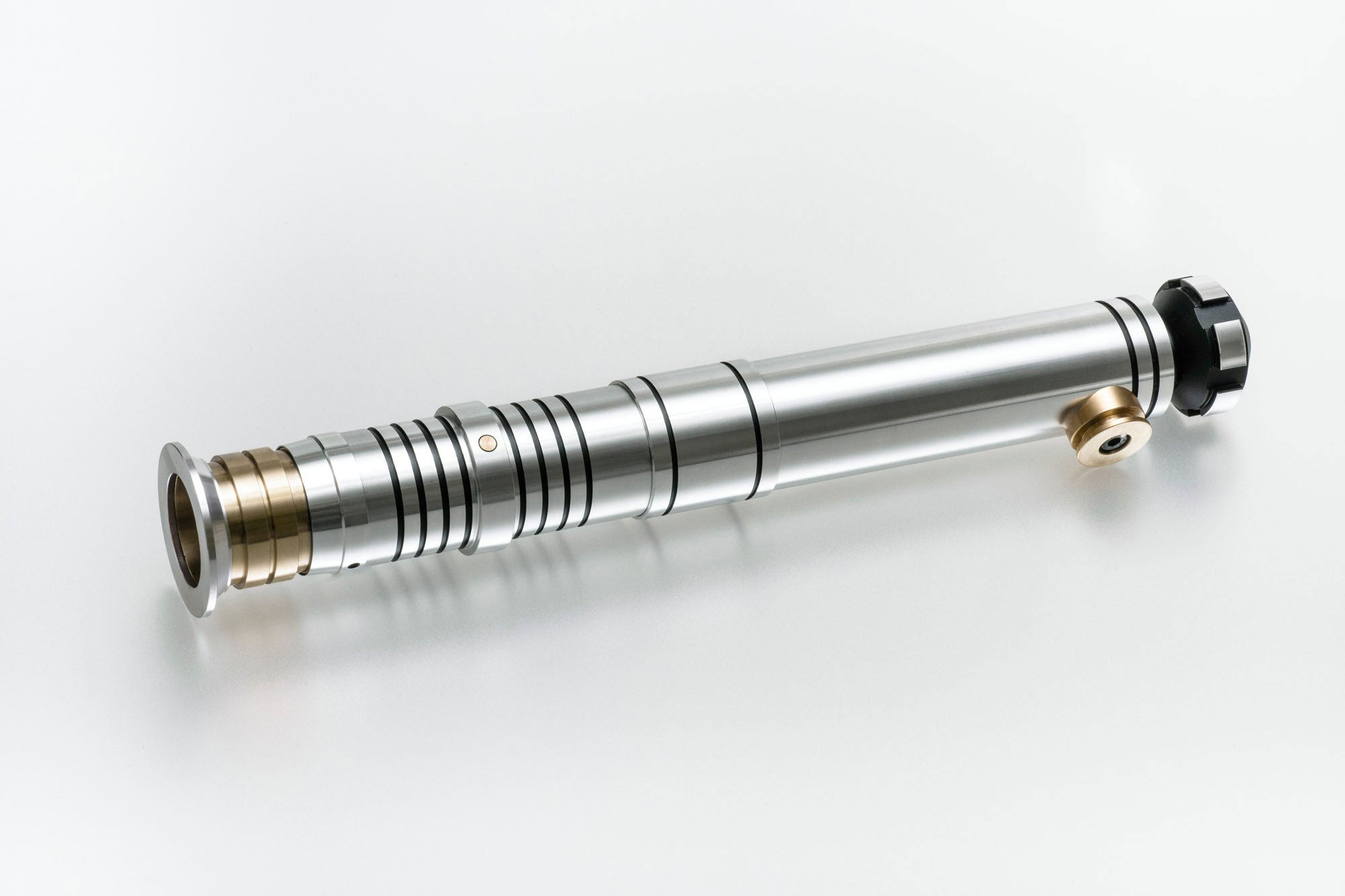

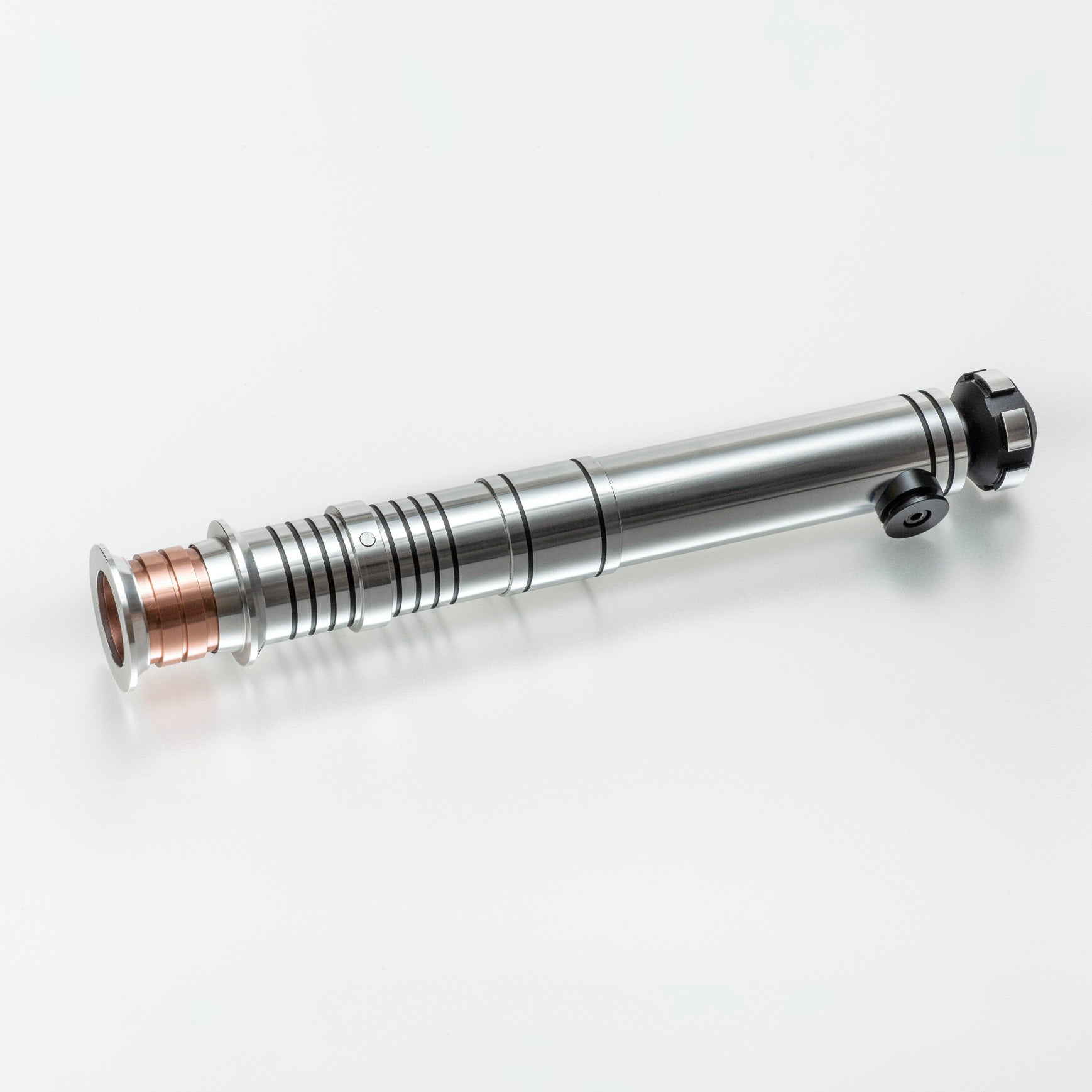

Here is our first budget and one of the most well engineered and accurate "Revanted" empty saber hilt, inspired by the Revan's Sith lightsaber from the Old Republic times. Designed and manufactured in collaboration with our friends and partners from Warsabers.

Our "Revanted" hilt has one of the slimmest neck and overal hilt diameters on the market for similar models, the first and only to work with 28mm speakers and have hidden sound venting. And all that at a very affordable price!

Chassis:

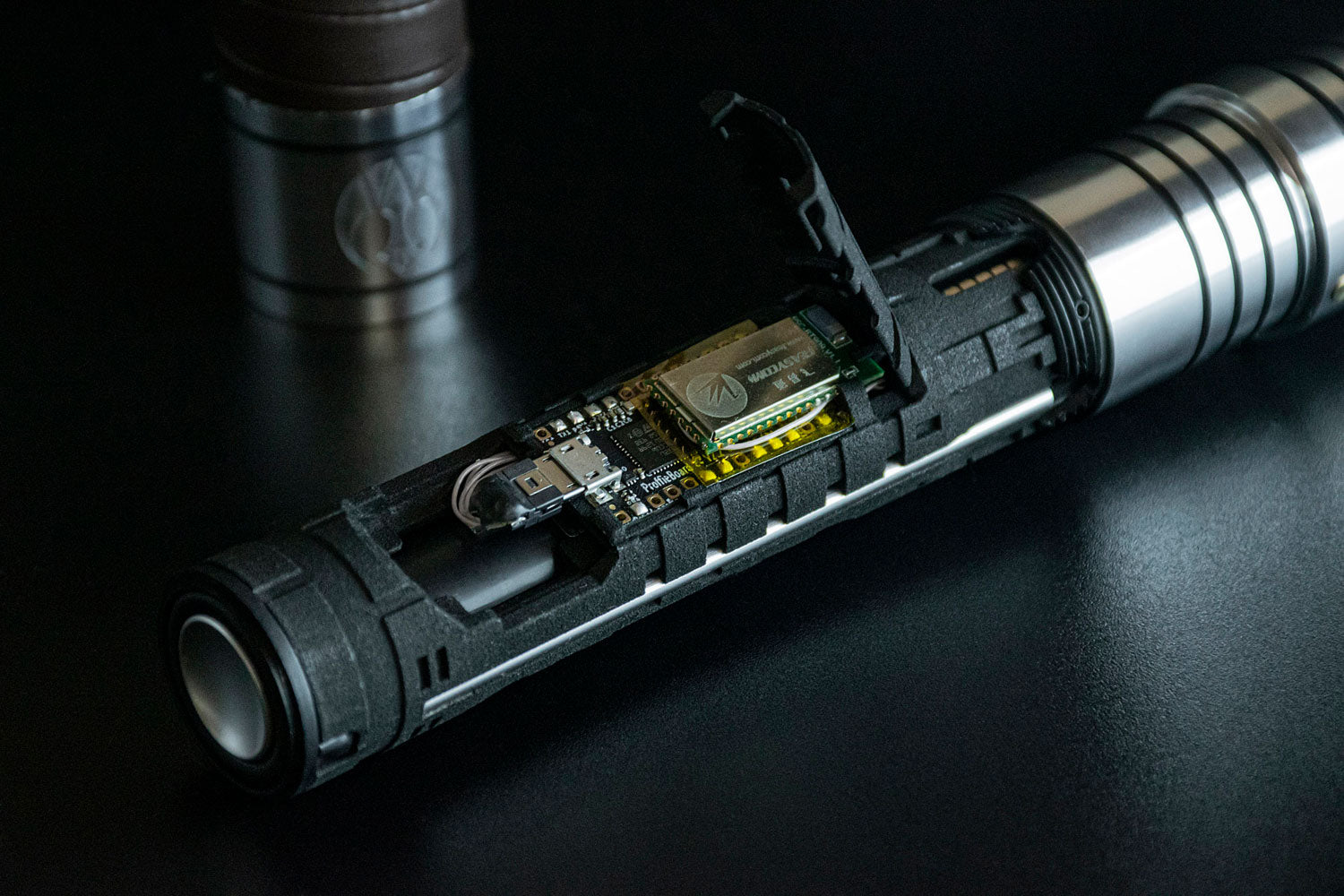

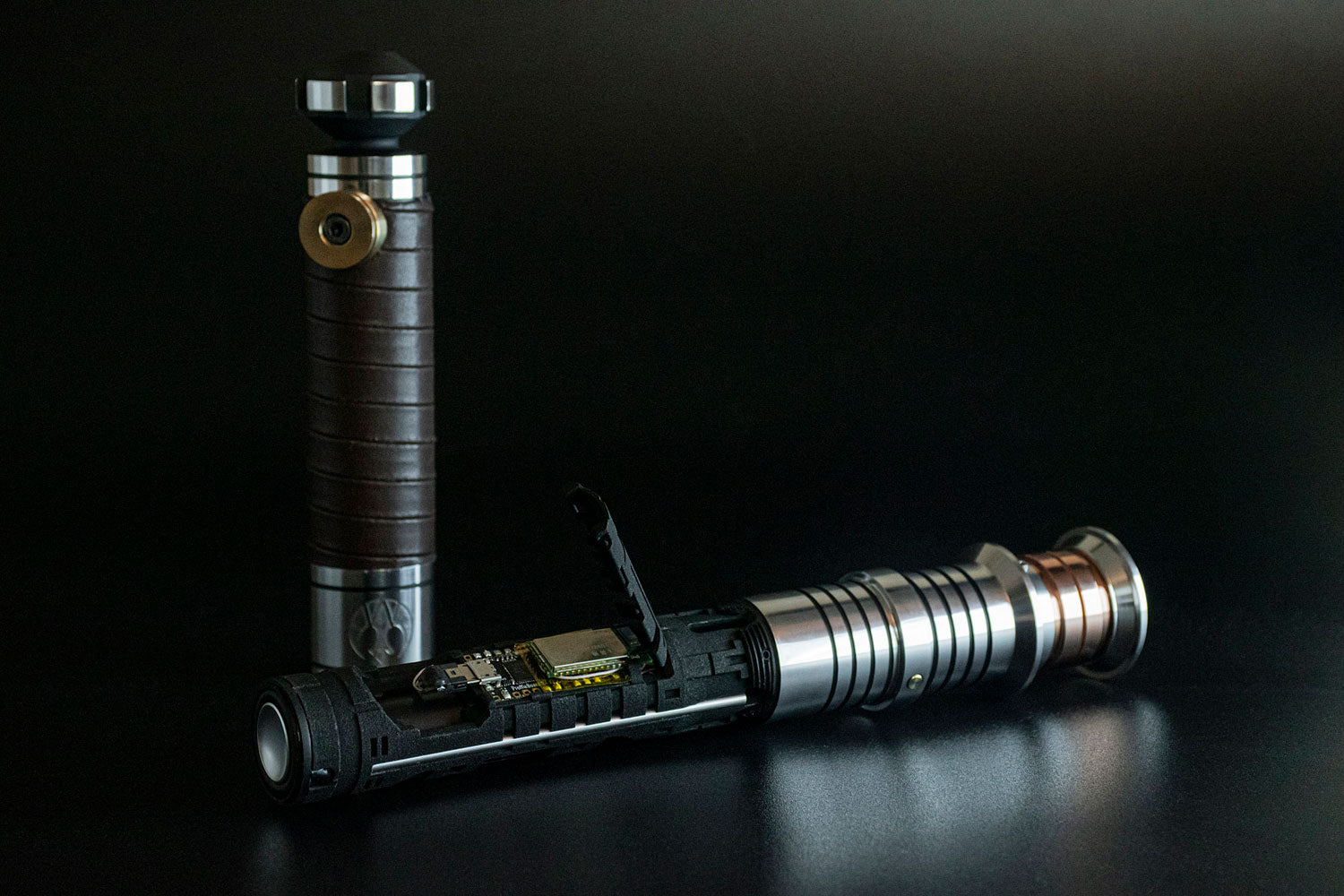

3D-printed chassis can be purchased here:

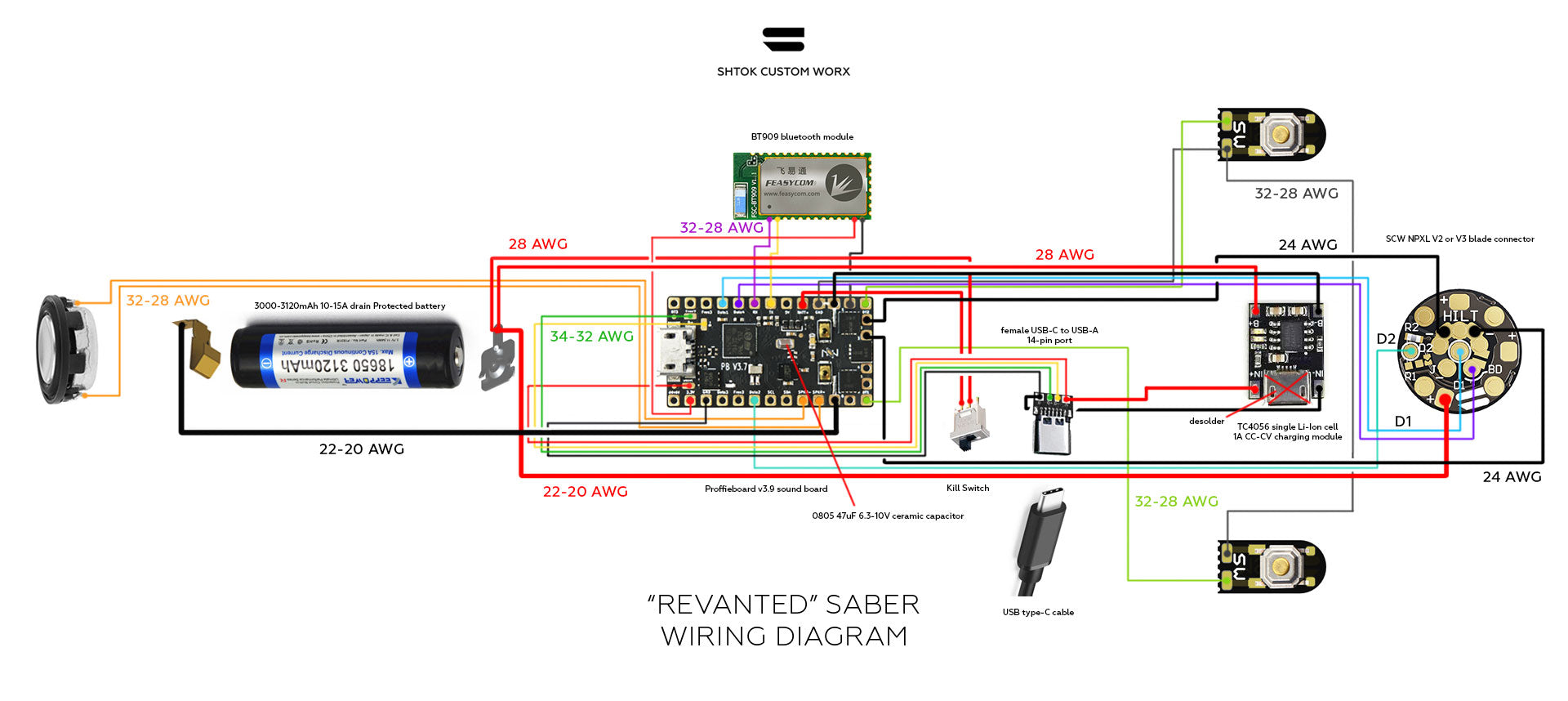

Wiring Diagrams:

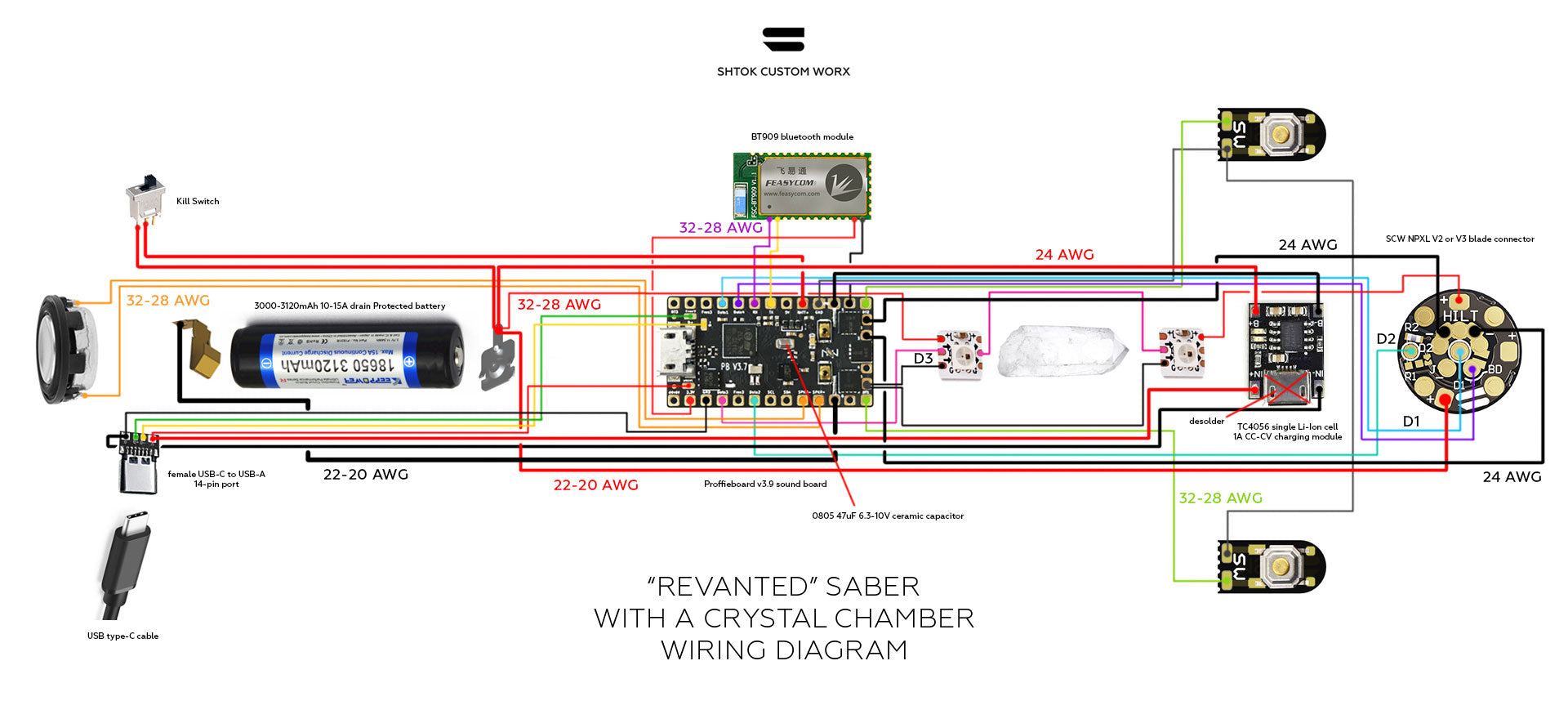

• [ For Proffieboard v2.2 with Crystal Chamber ] — DOWNLOAD

• [ For Proffieboard v2.2 without Crystal Chamber ] — DOWNLOAD

• [ For Proffieboard v3.9 with Crystal Chamber ] — DOWNLOAD

• [ For Proffieboard v3.9 without Crystal Chamber ] — DOWNLOAD

Features:

• for 1 inch blades

• for 28mm speakers

• aluminum LED heat sink included

• 2 tactile momentary buttons included

• hidden sound venting holes

• slim and accurate design

• genuine copper and brass accent parts

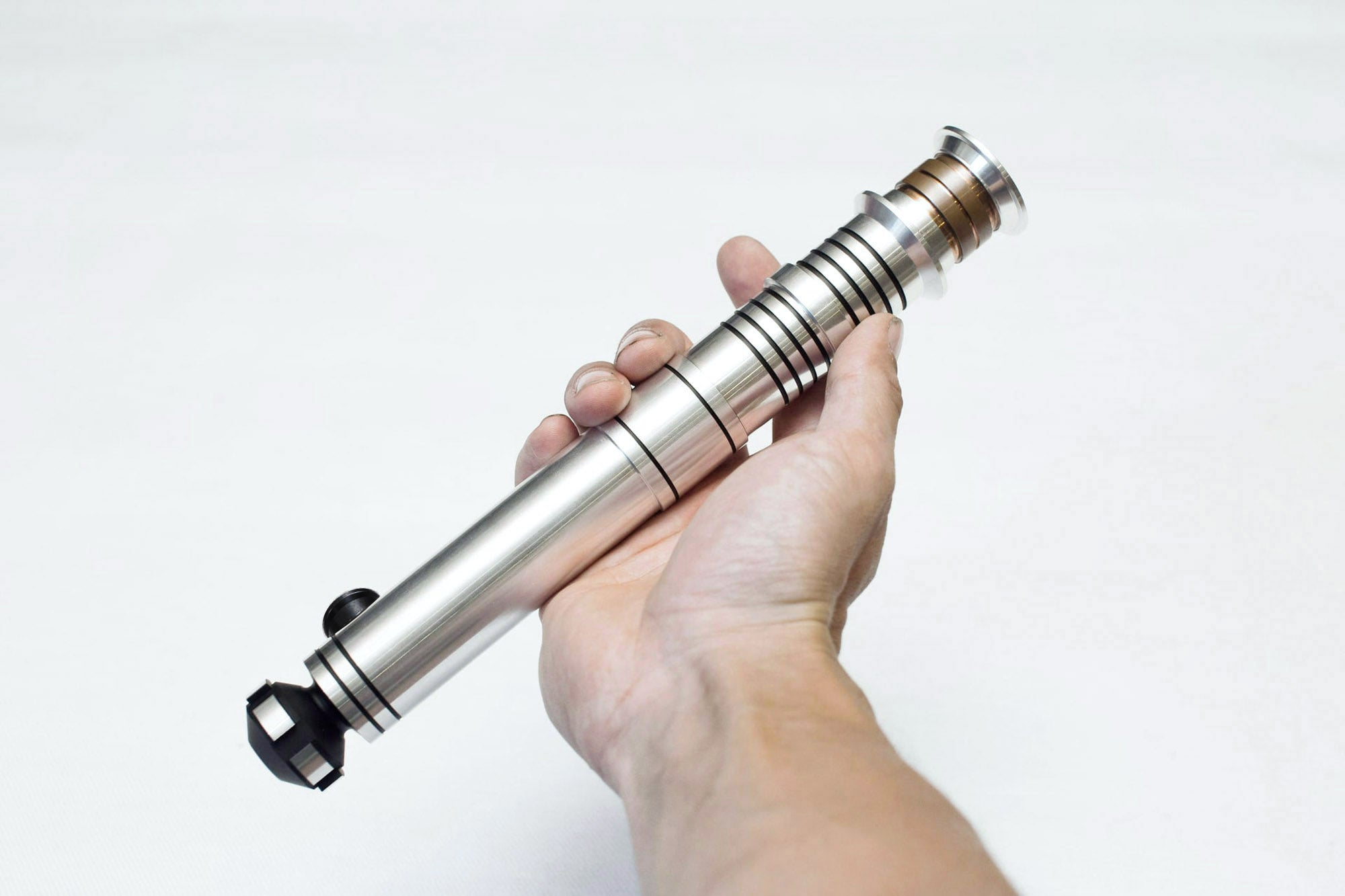

• less than 31mm grip section diameter

• 265mm total length

• 250g weight

Available options:

"WITHOUT CC": just the Revanted hilt

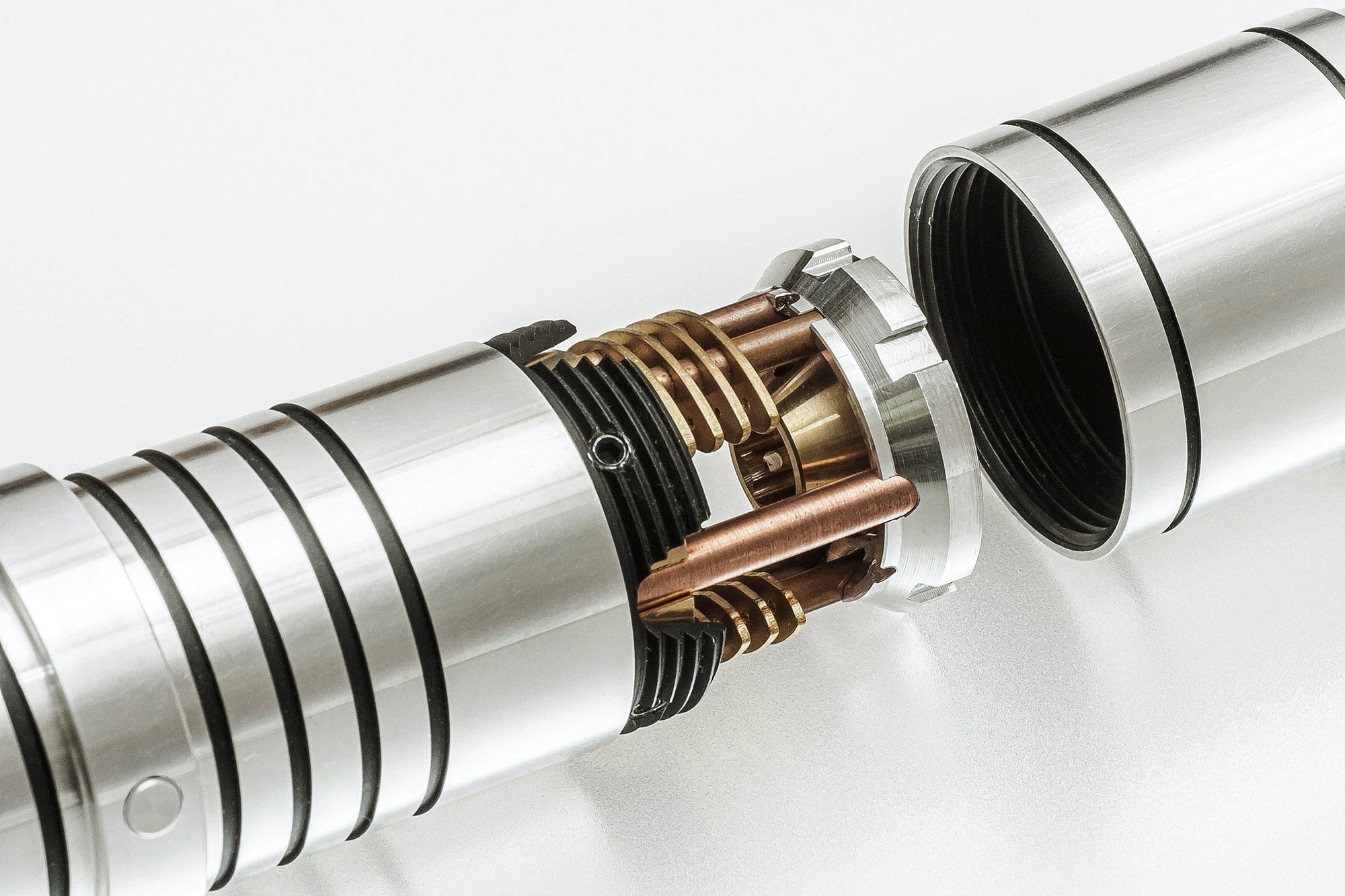

"WITH CC": Revanted hilt with a Crystal Chamber V1 kit

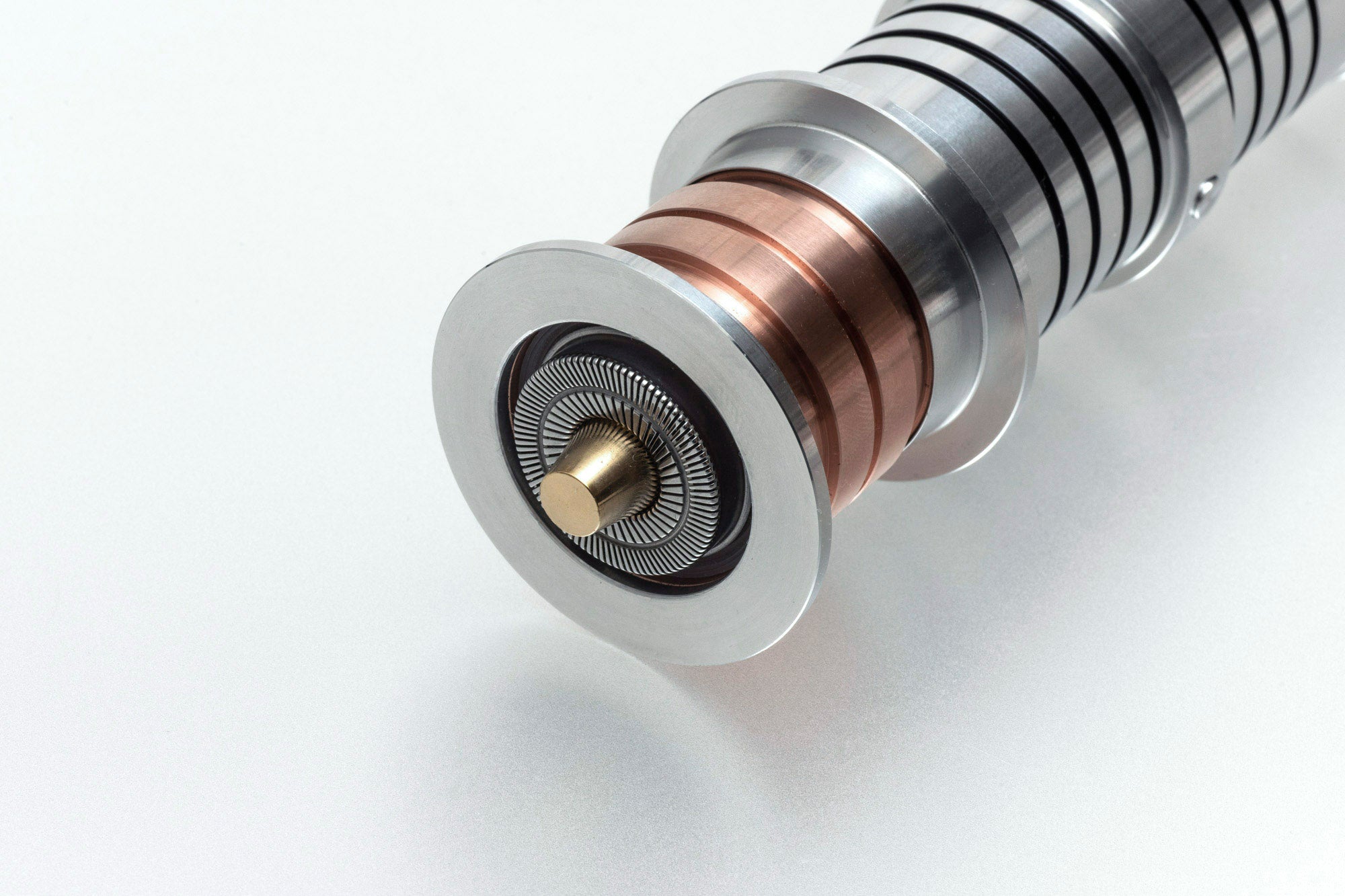

Emitter "STANDARD": front blade holder part (before the neck) with an accurate cone ring

Emitter "DUELLING": front blade holder part (before the neck) without the cone ring for more comfortable duelling

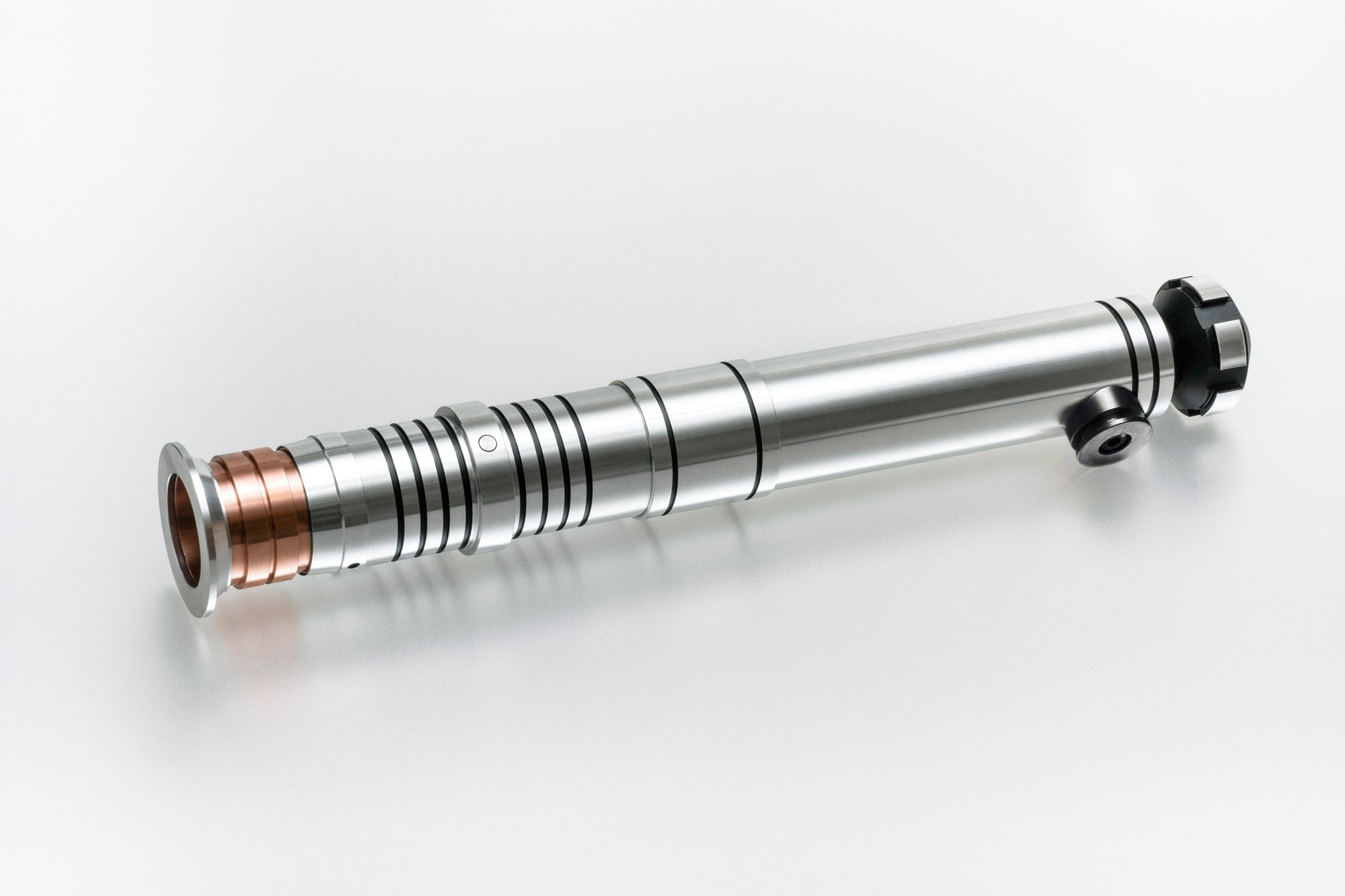

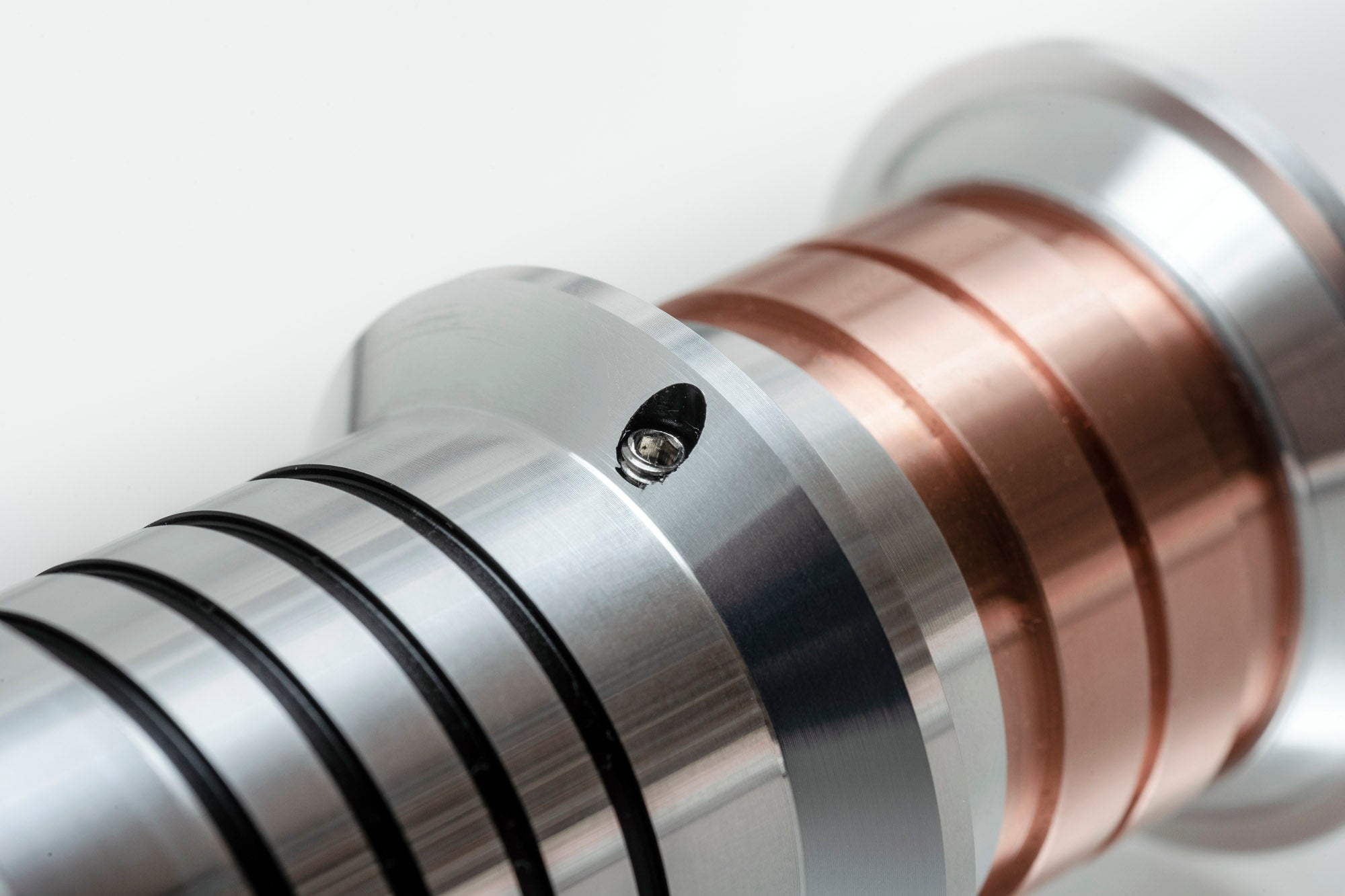

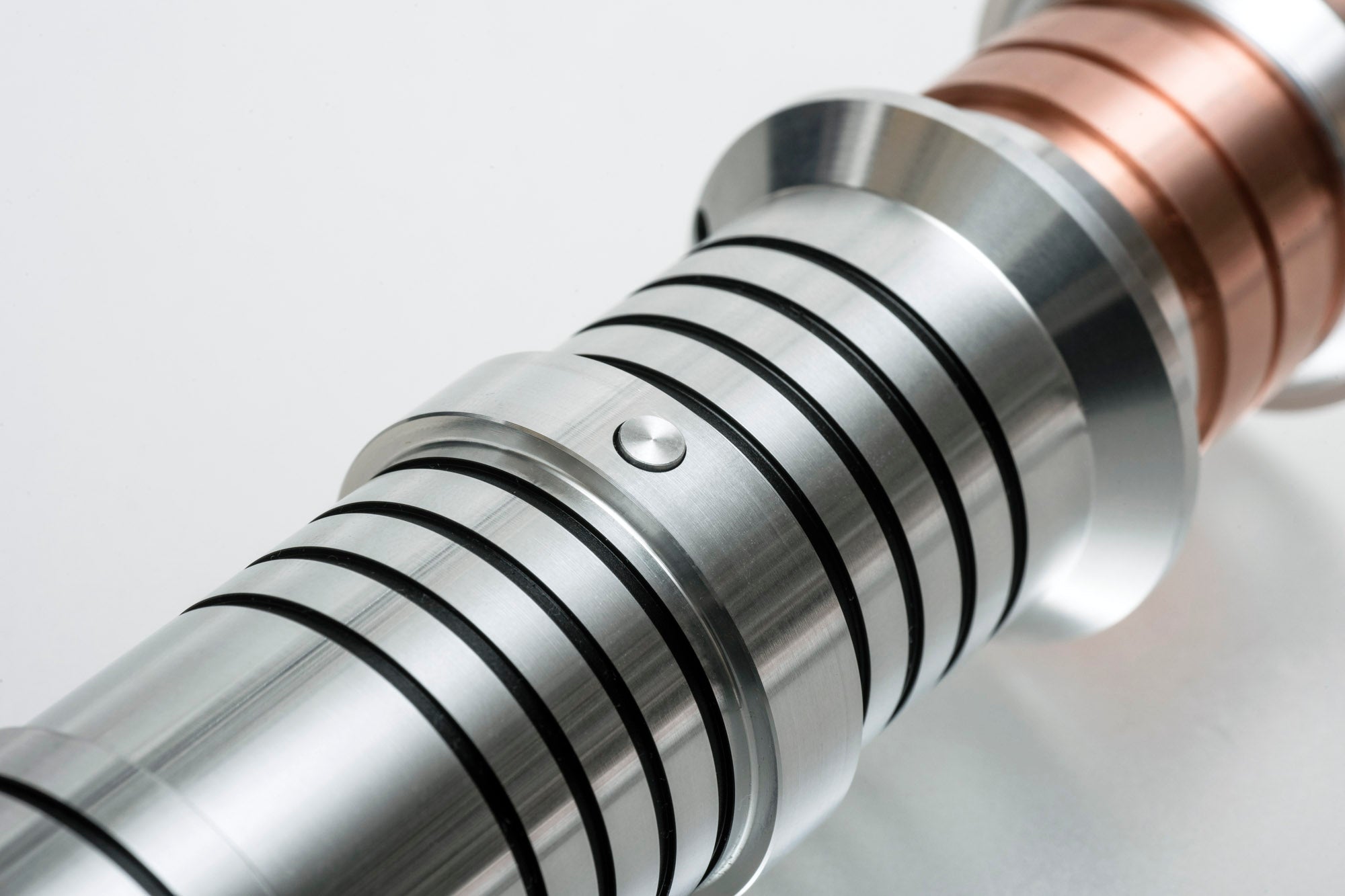

"DEFAULT ACCENTS": genuine copper neck, aluminum buttons, black covertec wheel

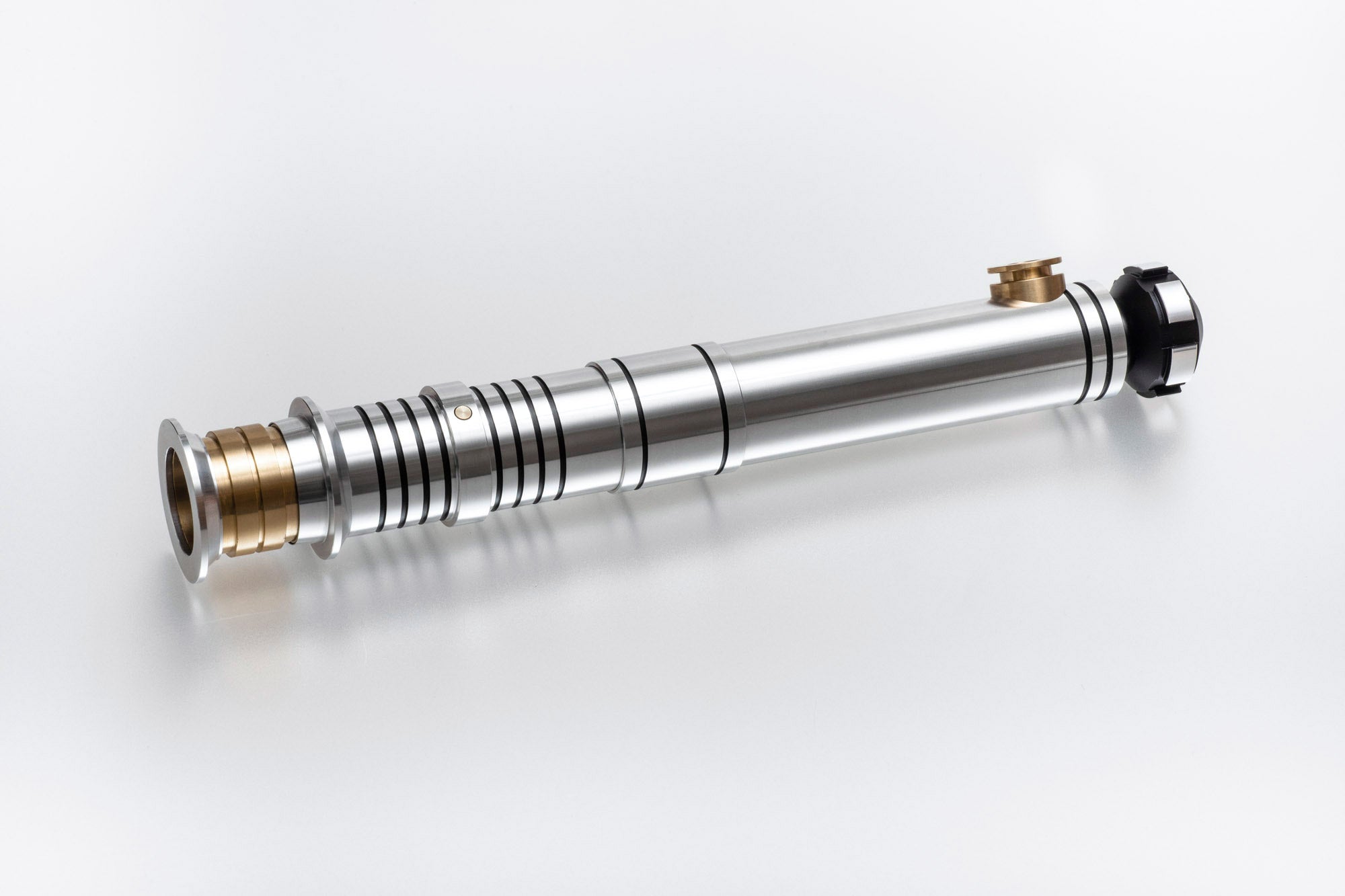

"BRASS ACCENTS": genuine brass neck, buttons and covertec wheel (we don't mix these parts with the default parts)

Parts materials:

• Copper, Brass, Aluminum, Steel (screws)

What's in the box:

• "WITHOUT CC" option: Revanted hilt (16 individual parts including screws)

• "WITH CC" option: Revanted hilt + Crystal Chamber V1 kit

• Revanted blade plug

• Comes fully assembled

Video reviews:
